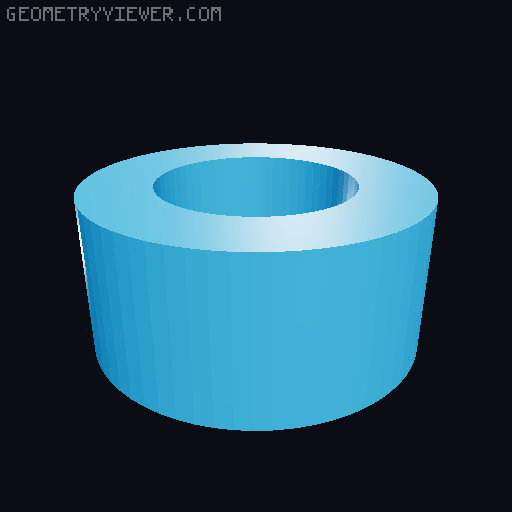

Magnetic PTFE adapter for Prusa Mini filament sensor
by Marcurio · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC |
| Triangles | 512 |
| Uploaded | Mar 3, 2023 |
⬇ 67 downloads
❤ 25 likes
👁 868 views
Description
Components 6x 8x2 (or 12x 8x1) magnets 1x M3x20 screw PC4-M10 male PTFE tube connector PTFE tube (4mm outer diameter and diameter 2mm inner diameter) Instructions No supports are needed I decreased thickness (0.2mm) of the layer below the magnets for stronger connection. Make sure you use 0.1mm layer thickness for the first layer (or use included .gcode). Insert 8x2 magnet (or 2x 8x1 magnets) in each hole when printer stops to change filament. Keep an eye on the magnets polarity Replace the original screw in the filament sensor by M3x20 screw. Use sleeve to effectively increase its head by 2.5mm
