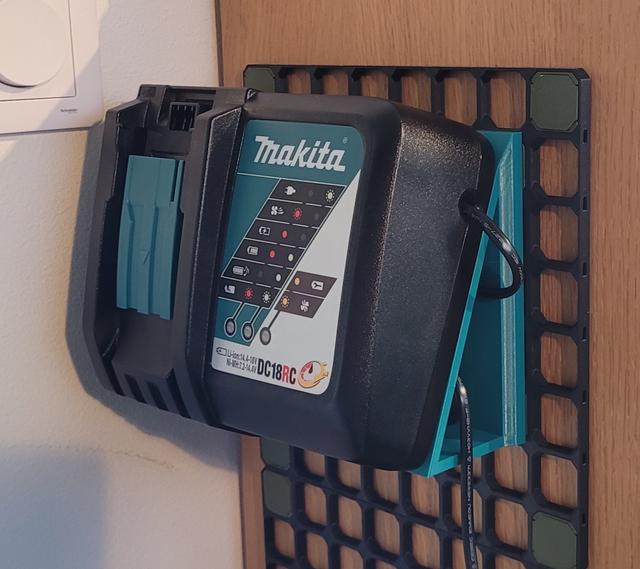

Makita DC18RC openGrid Multiconnect Mount 3D model thumbnail

Makita DC18RC openGrid Multiconnect Mount

by JSkold · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-SA
Triangles14.2k
UploadedOct 12, 2025
⬇ 53 downloads ❤ 24 likes 👁 356 views

Description

I was missing mounting options for my Makita DC18RC charger using openGrid . So, I took inspiration from existing wall mounts and designed these brackets, which work with openGrid using Multiconnect. This mount uses 7x5 openGrid tiles and ideally 4 Multiconnect snaps. The charger fits using the holes for the rubber feet. Just remove the feet and insert them into the holes of the mount; the charger will rest against them when mounted. The STL consists of two separate parts, the left and right brackets. They are ideally printed in the original orientation, i.e. standing up, because of the Multiconnect slot. I've printed my brackets using PETG, 0.4 mm nozzle, 0.2 mm layer height, 4 walls, and 15% infill.
holder mount wallmount charger bracket workshop makita makita18v dc18rc multiconnect opengrid
