Makita DC18RD Battery Charger Wall Control mount - Version 2

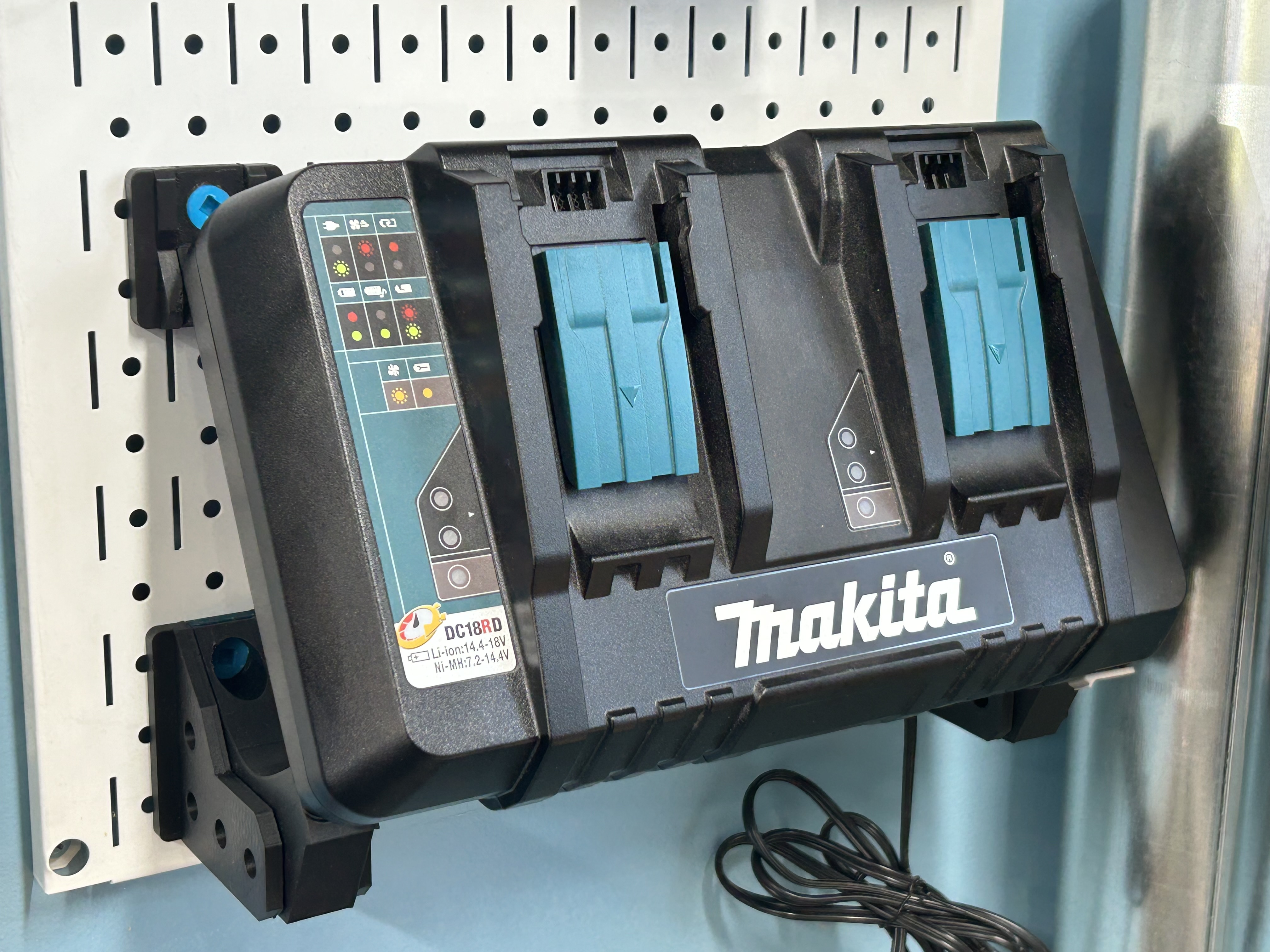

This uses the DDD Printable Wall Control System ( github ) creating an angled mount for the Makita DC18RD Battery Charger . 2024/6/22: Update - Version 2. Angle and mounting have been improved - it no longer requires a strap to keep it in place. Mount pins are now printed separately to avoid requiring support, thanks @CAS_334926 for the suggestion. There are four mount points, Top Left and Right, Bottom Left and Right. I had initially tried to mount it at a low 5 degree angle against the board, but this proved unsatisfactory for balancing and holding the weight of the charger. Version 2 is now at 30 degrees which keeps it grounded well. Connect the pieces using the connector pins - I used 3 or 4 on each side of the bottom pieces, there's no need to fill them all. To tighten these in place, I found it helpful to use a clamp or two. Print checklist: Bottom Left Center x 1 Bottom Right Center x 1 Bottom Left Sidepiece x 2 Bottom Right Sidepiece x 2 Top Left Center x 1 Top Right Center x 1 Top Left Sidepiece x 2 Top Right Sidepiece x 2 Mount Pin x 4 Locking Spacer x 4 Threaded pin x 4 Connector Pin x 24 (or more)
