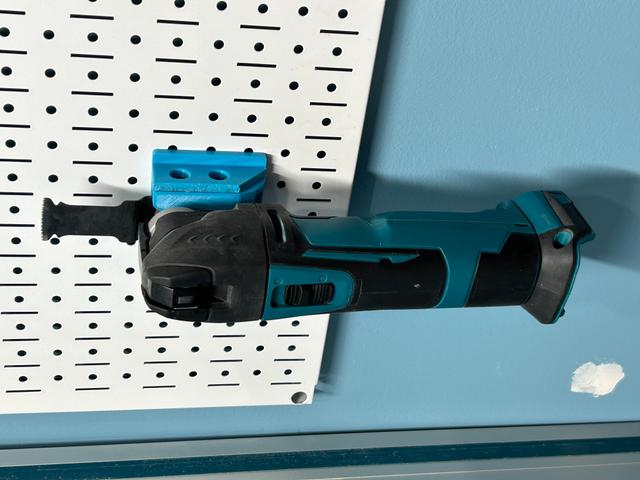

Makita Oscillating Multi-Tool mount for Wall Control

This uses the DDD Printable Wall Control System ( github ) to mount the tool. I've designed this using the Makita XMT03Z , but it may fit other similar oscillating tools. The mounting dimensions are 18.2mm wide and 6mm thick which support the shaft on the crank housing. Use a good percentage infill to keep this rigid, at least 40%. For the sidepieces, I used the included 1x3 side brackets. Use these 4x10x8mm pins to attach to the mount. I'd recommend using the locking spacers facing the wall surface, I used the 3x2 size. This can be used to lock in the mount using the threaded pin .
