Manual 2 speed gearbox experiment

by ekowi · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles238
UploadedApr 9, 2026
⬇ 217 downloads ❤ 4 likes 👁 147 views

Description

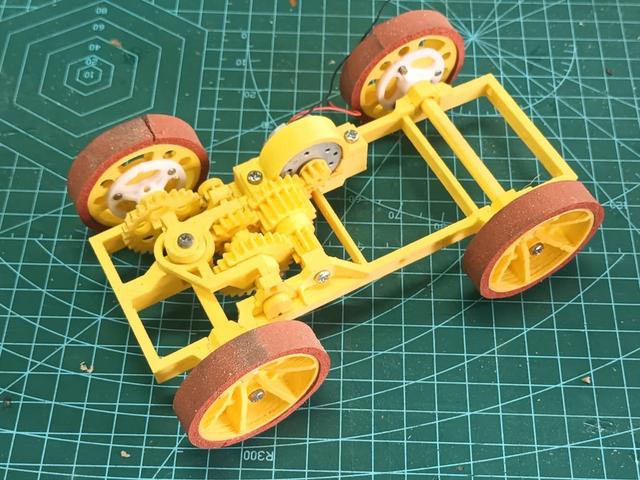

If this works, then I can replace the manual shift lever with a servo. Low gear to high gear ratio is 2.9. I shift the gears and not the dog clutch because... experiment. I thought shifting the gears on their axles would have less friction than shifting the dog which has to rotate the axle at the same time. Video of testing: https://youtube.com/shorts/y8aFx6ZadXo ###Printed parts wheelflange, wheel, bearing, clip x4 axle1_bearing, axle1_cap x2 everything else x1 ###Additional parts DVD motor M3 screws lubricant rubber strip for wheels ###Assembly Several holes need to be tapped for M3 thread: on the chassis and wheel_flange.
