Meade ETX-90 hard case laser cut templates

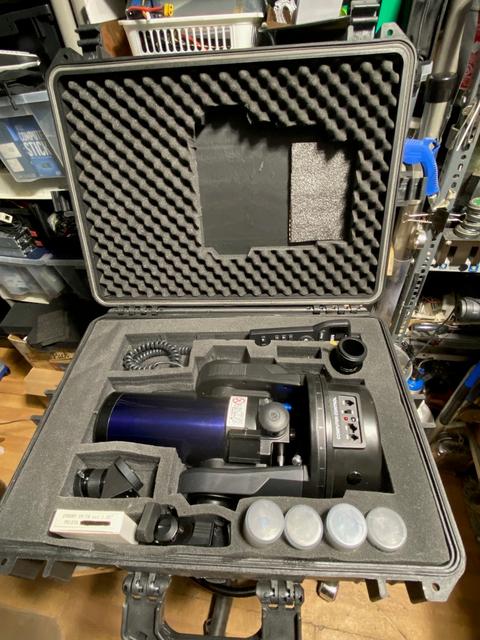

Looked everywhere and could not find a clean cutout of the ETX-90 foam indide the hard case. Found the raw jpg on Michael Weasner website (great source for ETX owners :-)) and cleaned it. I wanted to laser cut the inside foams of a 20x14x8 inch. pelican style case. Had to trace the lines (poor quality jpg) and trace the lines to process in GRBL. I joined the cleaned jpg and GRBL file as i used them but you can fit to your particular case size. The foam was 2 inch thick so i used constant burn at lowest speed with two or three pass and finished the cut with a blade. Files .nc are for LaserGRBL software Files svg are vector files Two separate files for the scope and for the accessories cut template. For the inside cover foam, flip the scope image horizontaly Have fun !
