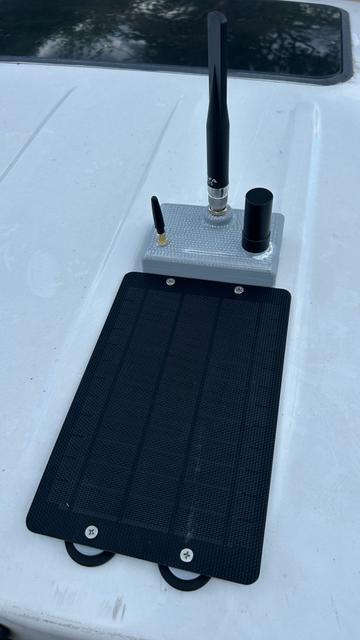

Mesh Car Node w/ XL Battery and External Antennas 3D model thumbnail

Mesh Car Node w/ XL Battery and External Antennas

by zsaat · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-NC
Triangles83.4k
UploadedApr 14, 2026
⬇ 2 downloads ❤ 1 likes 👁 26 views

Description

Here is the parts list I used: Battery: https://www.amazon.com/Meshnology-10000mAh-1163115-Protection-Insulated/dp/B0F1FMN2C5/ref=sr_1_1?sr=8-1 RAK19003: https://www.amazon.com/RAKwireless-WisBlock-Meshtastic-Starter-RAK19003/dp/B0DFMMTQZM/ref=sr_1_1?sr=8-1 ALFA 915mhz Antenna: https://www.amazon.com/Network-AOA-915-5ACM-Outdoor-802-11ah-Application/dp/B08H8J6ZV6/ref=sr_1_1?sr=8-1 Bluetooth Antenna: https://www.amazon.com/BOOBRIE-Antenna-802-11b-Aerial-Wireless/dp/B0991PKTDL/ref=sr_1_3?sr=8-3 GPS Antenna: https://www.amazon.com/Precision-Positioning-Four-Star-Multi-Frequency-Slinkdsco/dp/B0FPKPBW7G/ref=sr_1_2?sr=8-2 Solar Panel Alternative: https://www.amazon.com/Monocrystalline-Waterproof-Lightweight-Backpack-Cellphone/dp/B0C4L1L1BD/ref=sr_1_6?sr=8-6 Magnetic Feet: https://www.amazon.com/DIYMAG-Anti-Scratch-Mounting-Neodymium-Studs%EF%BC%8CStrong/dp/B0CW5ZVMF6/ref=sr_1_6?sr=8-6 N-Type to UFL SMA to UFL (x2) M3x8 (x11) Assembly should be straight forward. I ended up printing the shell outside down at a 40deg angle. Flat resulted in lots of sagging and bad layer adhesion. Could be my print settings. My supports stuck really bad, resulting in the ostrich leather effect.
car mobile client node repeater meshtastic meshcore
