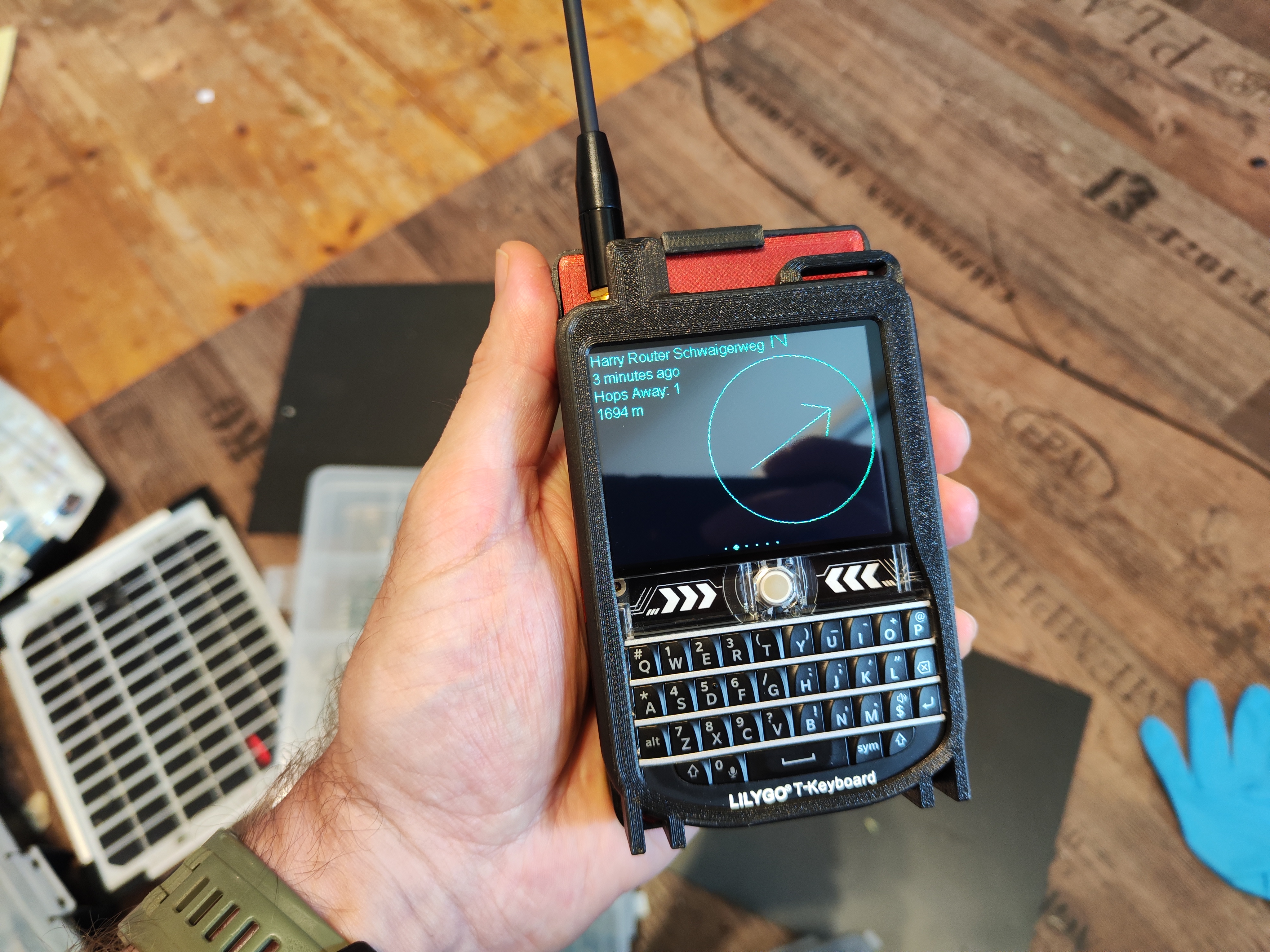

Meshtastic Lilygo T-Deck 10000mAh

UPFRONT! I created a Discord channel for my Thermal vision builds but will add a #meshtastic channel there as well in case you have questions or problems. Please remain to the meshtastic channel for all sort of questions as all the other channels are ONLY for my thermal builds! https://discord.gg/Ce9BJ2DK3j _________________________________________________________________________________________________________________________ UPDATE 04.10.2024 Added optional Battery cover with fast charging. Simply glue the PCB holder on the back cover, slide in the charging PCB. Parallel connect + and - to the BMS on the battery. route both cables in the recess on the back cover out of the cutout, solder wires to charging PCB. You can use some transparent printer filament to drive a very short piece of it into the round hole from the charging PCB cover for the below charging indicator light, looks much better then without it! Snap on the charging PCB cover and your done. 15 Watts fast charging!. As the charging PCB can get quite a bit warm I would recommend to use PETG, PLA will still do but when charging and warming up there is a possibility of deforming if you happen to pull on the USB cable or apply pressure to the area of the charging PCB! -------------------------------------------------------------------------------------------- YES the side bars are not connected to the frame along the side! but only on both ends. It does nothing to the structural integrity of the case, I wanted to make it as flat as possible and that for I made it how it is. This is not an error as that line gets pinched in between both halves anyways so it is not seen nor does it cause any unwanted flex ITS OK! Fits Antennas with a max of 10mm wide antenna base. Please check the Remix, this one is based of for all the needed info not listed here: Makerfocus 10000mAh Lipo battery: Makerfocus 3.7V Lipo Battery 10000mAh Lithium Rechargeable Battery 906 – MakerFocus GPS Switch: (Optional) 10/20 stücke 50V 0,5 EINE SS12F15 Mini Größe Schwarz SPDT Rutsche Schalter für DIY Power Elektronische Projekte g6 1P2T Kippschalter Griff 6mm - AliExpress 13 GPS module (GPS +BDS): GPS + BDS dual-modus modul flight control positioning navigator, ATGM336H ersatz, für arduino NEO-M8N NEO-6M - AliExpress 502 M3 brass inserts ( 4.5mm) Optional! M1 M 1,4 M 1,6 M 1,7 M2 M 2,5 M3 M4 M5 M6 M8 Messing Wärme Gewinde Einsatz Mutter hot Melt Gerändelt Injection Einbettung Mutter von 3D Pringting - AliExpress 13 Quick charging PCB (optional): Typ C USB Eingang High Strom 3A Polymer Ternären Lithium-Batterie Schnell Lade Board IP2312 CC/CV Modus 5V Zu 4,2 V - AliExpress 502
