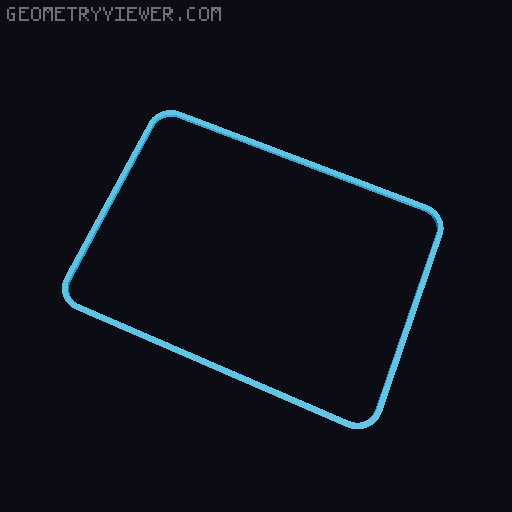

Meshtastic rugged box for RAK 19007 3D model thumbnail

Meshtastic rugged box for RAK 19007

by Olivier · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles368
UploadedMar 24, 2024
⬇ 436 downloads ❤ 99 likes 👁 5.0k views

Description

I remixed the excellent Rugged Box to hold my mobile, temporary installation Meshtastic box. It currently holds 2x 18650 batteries in parallel and has space for 4 magnets so you can stick it to a steel surface. The plate is modeled for a RAK Wireless 19007 but the plate is seperate so it's easy to exchange if needed. There is enough space to plug in a USB-C for charging if you use a cable witout a bulky connector. Use some superglue to hold the magnets in place, and if you like, the RAK plate too. I didn't glue mine so I can change it if needed and it stays in place very well just on the friction fit alone. Update 27-02-2024: the lid is updated with space for some velcro (max 8mm) or a ty-wrap to hold the 18650 in place even if you drop it. Parts list: 4 of these SbM-209 battery springs: https://nl.aliexpress.com/item/1005005637651458.html?spm=a2g0o.order_list.order_list_main.29.5b2379d2vd5xG5&gatewayAdapt=glo2nld 4 magnets sized 20x4mm I used this antenna but there are certainly more options: https://nl.aliexpress.com/item/32811159710.html The antenna hole is sized at 10mm but that's easy enough to change in the Fusion 360 design.
rakwireless rak4631 rak19007
