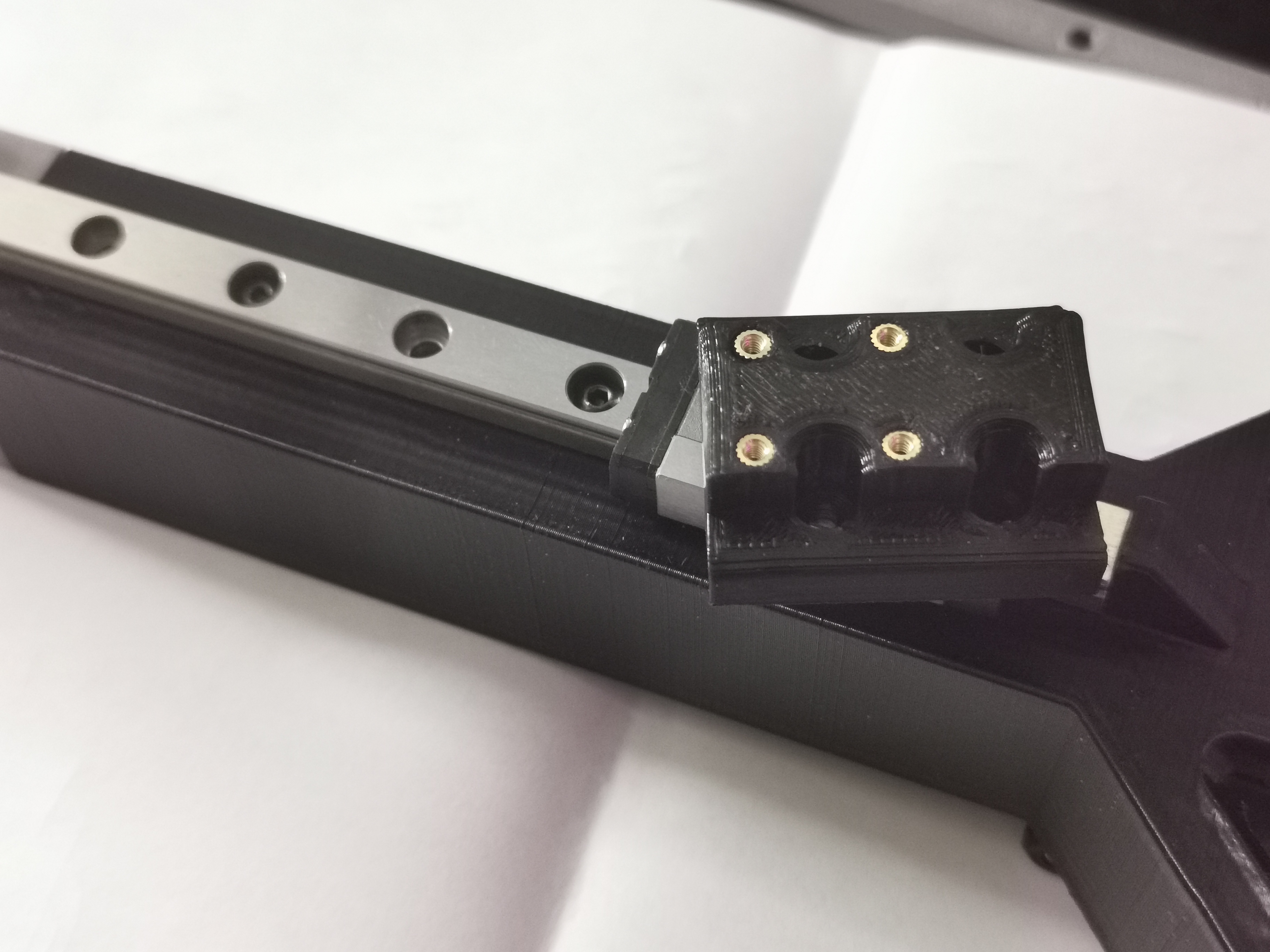

MGN9H rail convertion kit for BaGoon's insert press 3D model thumbnail

MGN9H rail convertion kit for BaGoon's insert press

by Stavdahl · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-SA
Triangles2.4k
UploadedFeb 12, 2025
⬇ 58 downloads ❤ 12 likes 👁 405 views

Description

You can use these parts this with this model https://www.printables.com/model/808502-heat-insert-press I had already printed out all the parts before realizing that the 150mm rail I had was not the one I needed for this press. Still, I was already set on finishing it now and could not be bothered to redesign the arm/holder, so I made a conversion kit instead. I used 4 pcs of M2 heat inserts, the longer the better I suppose, I used the longest one I had. I have a cheap printer so this might not be an issue for you, but it was a bit tight for me, just like the original parts and I put the rail on and used an extra long M3 screw to press the M3 nuts into the nutbar before I mounted it in place, the good news about that is they will not fall out I guess. I hope someone else also needs this. if you need M2 heat inserts you can get some on Aliexpress with my affiliate link here: https://s.click.aliexpress.com/e/_onLCRLm
press mm kit rail heat remix mgn9h insert 150 heatinsert conversion adaption
