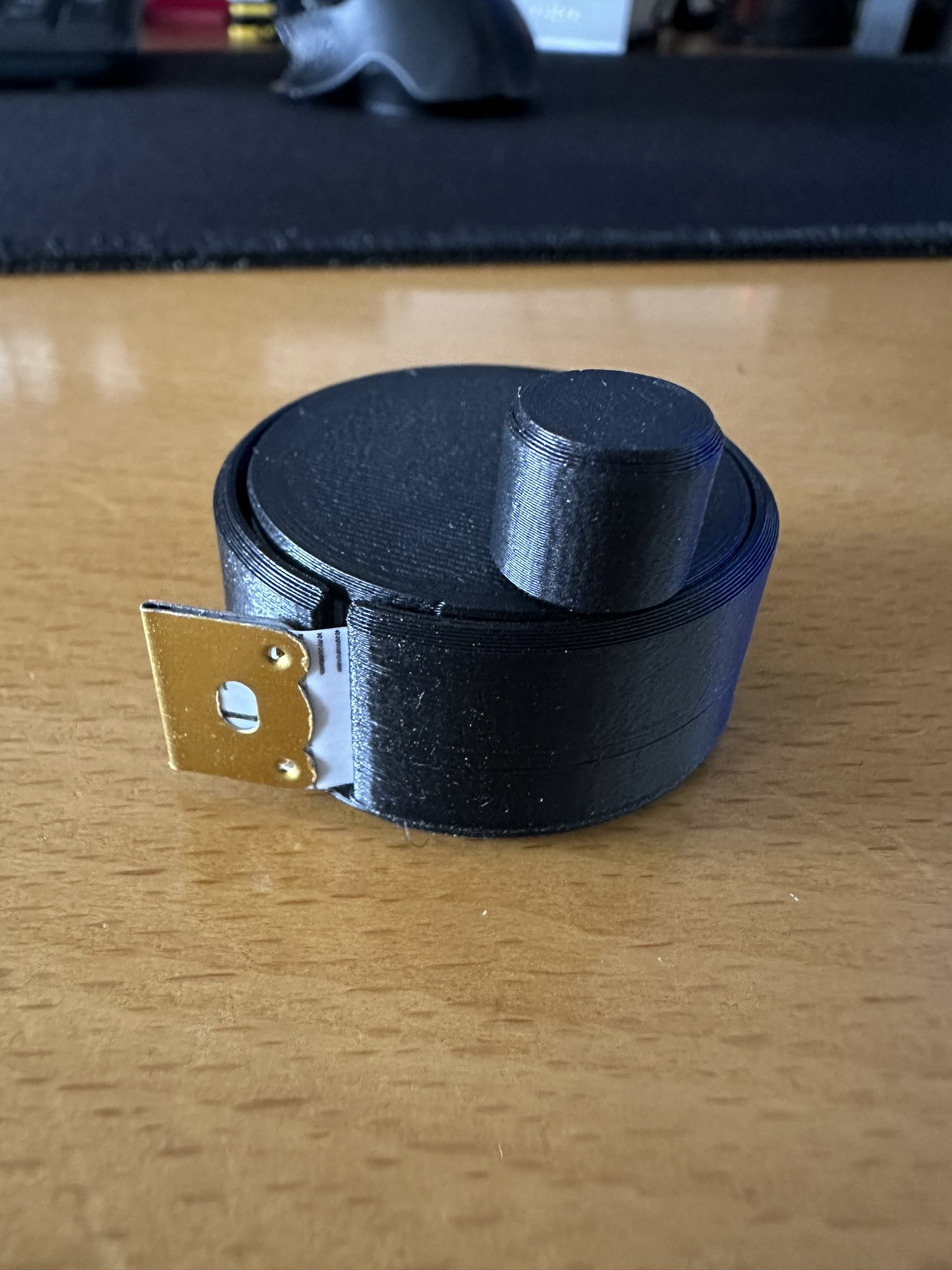

Mini flexible tape measure spooler remix
by Royal198 · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 1.7k |
| Uploaded | May 31, 2024 |
⬇ 55 downloads
❤ 7 likes
👁 387 views
Description
As original models did not fit my measuring tape I decided to do my first remix. Inner diameter: 34mm For metal part of the tape it is: Height: 12.9mm Lenght: 10.70 See photos section I used M3x6 torx screw for the handle M3x8 torx screw for the body Do not tight the screws too much as you will have hard times to rotate the spooler. I printed with 0.25N at Prusa XL at 0.15 layer with Prusament Matt Black PETG. I personally used 5 perimeters since I printed with small nozzle but with 0.4 you will be fine with 3 perimeters. If you would like me to model different dimensions, drop the comment and I will do my best.
Originally published on Printables
