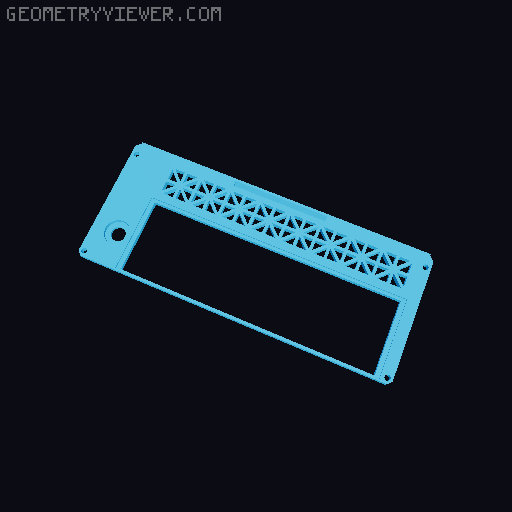

Mini ITX PC case - HDD/SSD Remix 3D model thumbnail

Mini ITX PC case - HDD/SSD Remix

by TerrorGene · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY
Triangles5.5k
UploadedMay 28, 2025
⬇ 161 downloads ❤ 19 likes 👁 1.1k views

Description

This is a remix of makerunit's Mini ITX PC case with support for a HDD & space for several SSDs. (If you make one, please upload a make! it is very much appreciated! Thank You.) What I changed: Made case 2cm thicker. Made back panel 2cm taller. Added HDD mount to top panel. Added no power button version. Added vents to back panel. Tapered Motherboard supports to allow mounting Motherboard directly to case without standoffs. Added Lowered back panel version for use with mounting motherboard directly to case. I really liked this minimal case, but i wanted to use it as a remote backup server, so i added support for a HDD & due to the case height you can also mount several SSDs on the internal walls (with double sided mounting tape or command adhesive strips). I lowered the Mobo to give a little more breathing room for the cpu cooler. my board & cooler are rather low profile, so please check your measurements before printing. There is roughly 46mm between the top of the HDD & the motherboard supports if mounting directly to the case & using the Rear_Vented_Lowered back panel. There is Roughly 40mm if using the 6mm standoffs that makerunit's design uses. Make sure you use the Rear_Vented_Lowered back panel if you are mounting directly to the case & want the 46mm spacing. Thank you makerunit for your fantastic design!
gaming computer pc miniitx pccase miniitxcase

Originally published on Printables
