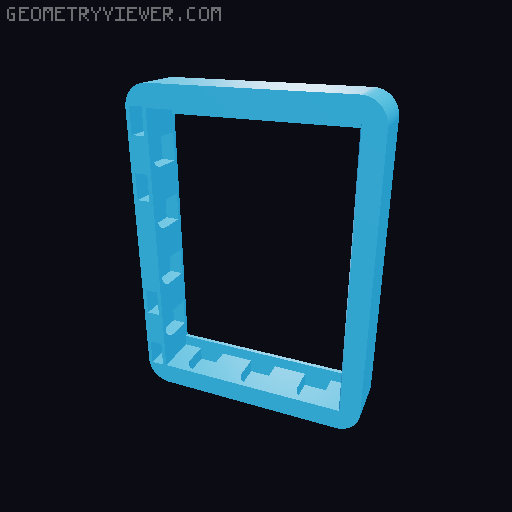

Mini Vault with Lever Tumbler Lock 3D model thumbnail

Mini Vault with Lever Tumbler Lock

by Rocco's Stuff · via Printables
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles5.0k
UploadedNov 5, 2024
⬇ 4.1k downloads ❤ 2.0k likes 👁 35.2k views

Description

This vault uses 100% printed parts and adhesive/glue - no bearings or metal dowels. It can be printed on Prusa Mini (and larger printers) and the entire box prints without support - the only exception is the key but it prints well with organic supports. In the video, I used the following filament: Prusament PETG - Galaxy Black & Urban Grey Hatchbox PETG - Bronze, Gold, Electric Lime, Red I used JB Weld Plastic Bonder as the adhesive in the video. Weights and rubber feet can be used, but they are optional: Rubber Feet - https://www.amazon.com/dp/B0BLN4TCPT?ref=ppx_yo2ov_dt_b_fed_asin_title Metal Weights - https://www.amazon.com/dp/B072JXSN9P?ref=ppx_yo2ov_dt_b_fed_asin_title There are 2 versions of the box, Standard and Jumbo. They both use the same door, but jamb and box pieces are different and the files are clearly labeled - be sure to select the correct jamb and box files! A few tips for the assembly: If multiples of a file are required, the file name ends with “-X#” with the number indicating how many should be printed For Example: "Bolt-X12" means to print 12 Bolts The following files have pieces which bend, so I recommend printing with PETG: Lock-Spacer1 Lock-Lever1 Lock-Lever2 Lock-Lever3
mini lock vault key tumbler lever levertumbler
