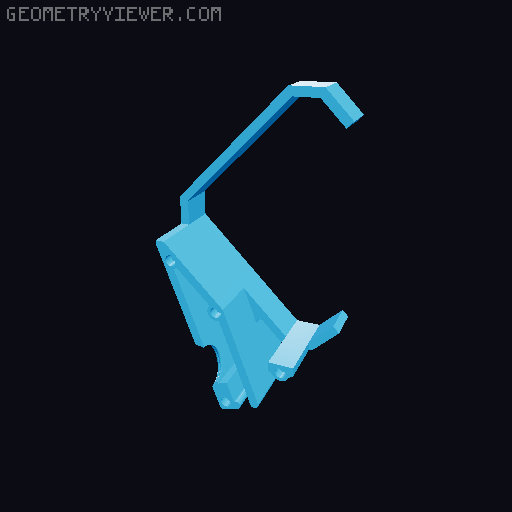

Mini+ Z-axis Motor Mount for Arducam Day-Night Vision Raspberry Pi Camera 3D model thumbnail

Mini+ Z-axis Motor Mount for Arducam Day-Night Vision Raspberry Pi Camera

by PumpkinSouffle · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles1.8k
UploadedMar 25, 2021
⬇ 70 downloads ❤ 6 likes 👁 1.7k views

Description

Rough prototype remix of two existing projects: https://www.prusaprinters.org/prints/45962-prusa-mini-mini-raspberry-pi-camera-module-v21-8mp https://www.thingiverse.com/thing:3402755 Parts: The Arducam night vision pi camera on Amazon (non-referral link): https://www.amazon.com/gp/product/B07X1VGQSL 60cm camera/display cable for Raspberry Pi (non-referral link): https://www.amazon.com/gp/product/B07J68TJ7L Notable modifications: Original Thingiverse pi night vision back case modified to remove hanging screw mount then sandwiched parallel to original right mount piece for pi camera. Front cover modified to allow for easy access to camera connector, as well as uncovering the top right sensor. Notable issues: Center of lense does not intersect with nozzle in a straight line Added mass is too heavy for original design; tape required to hold two pieces together If I release a 2nd version, I'll fix these issues. You'll need at least support build plate only. If you want the inside to be cleaner, consider printing open side down with supports. I chose to print in the stl orientation with support build plate only.
raspberrypi raspberrypicamera raspberrypicam raspberrypinoircamera raspberrypinoircam raspberrypinightvision
