MiniSkidi Mk3 quick connect attachment plate Dupont connector plug

by CurlyVole · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles52
UploadedMay 18, 2024
⬇ 18 downloads ❤ 2 likes 👁 190 views

Description

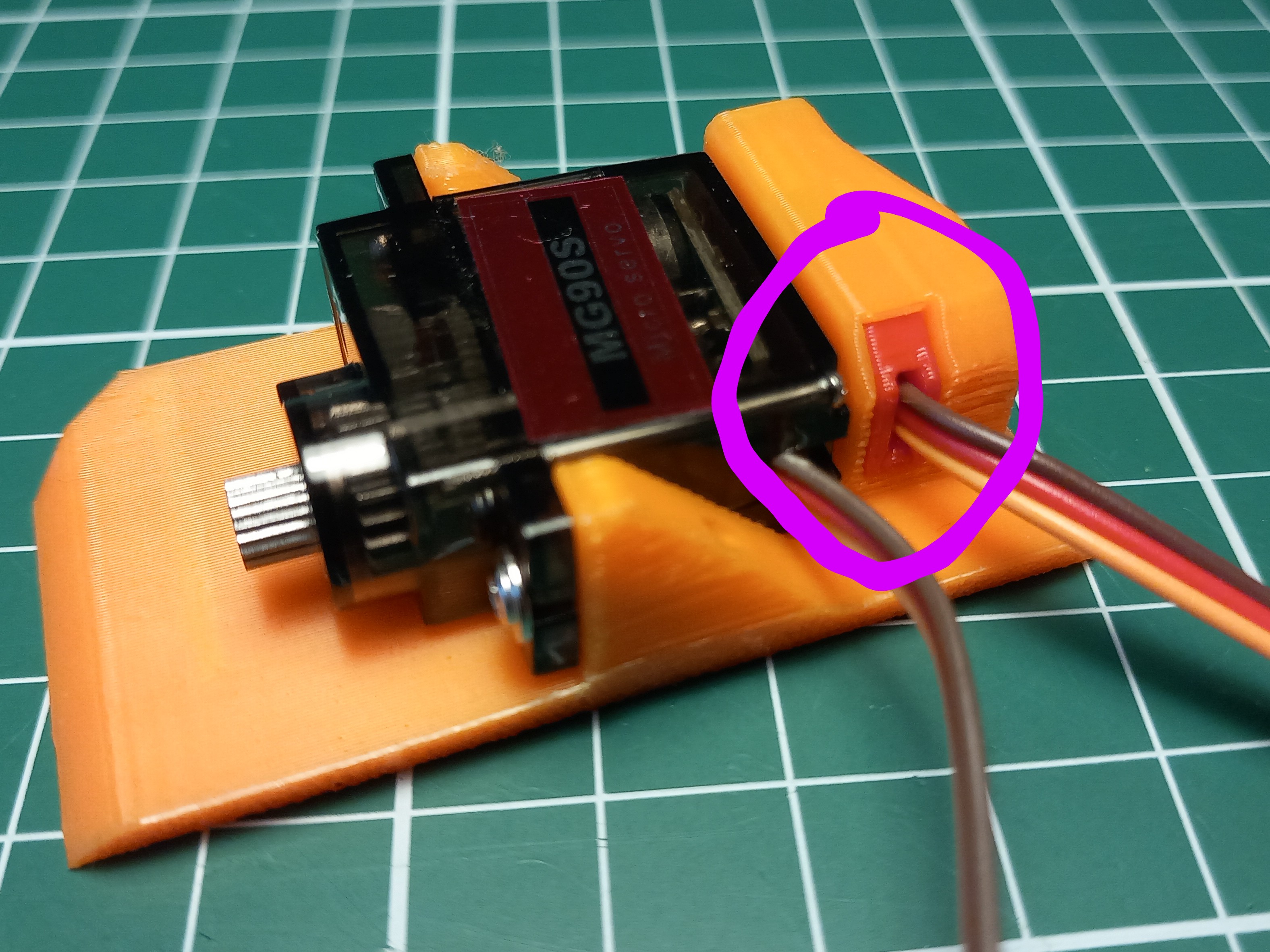

The quick wiring attachment plate by @Printoptiontwo enriches the usability of the MiniSkidi from ProfessorBoots by enabling the quick swap of different, wired attachments. As it is, the Dupont connector used for connecting attachments (highlighted in the second picture) is not fixed in its place and can slip out when no wire is attached. I designed this simple plug to hold the Dupont connector in its slot (the red thingy, that's highlighted with a purple circle in the title picture). It consists of two components so it can be laid around the wires and closed in place. It is hold in by friction as there is no tolerance. It can be pushed out by pressing on the Dupont connector.
plug quickconnect miniskidi
