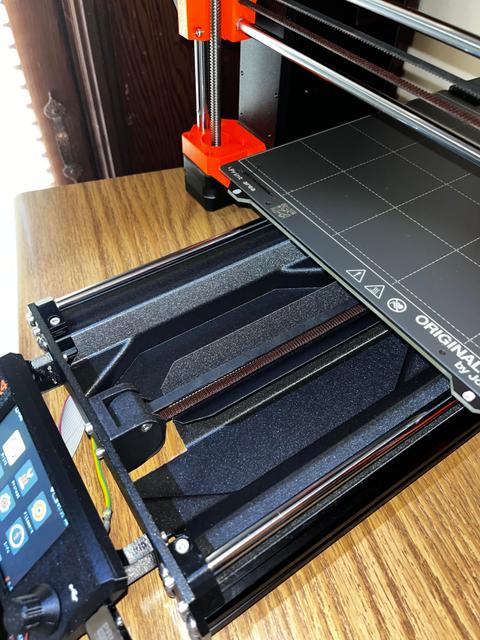

MK4 Center Tray with Cutout for Slim Front Tensioner 3D model thumbnail

MK4 Center Tray with Cutout for Slim Front Tensioner

by grtych · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles3.2k
UploadedJan 23, 2024
⬇ 48 downloads ❤ 13 likes 👁 637 views

Description

**CalTechConcepts now has a revised version that addresses the Tensioner** Wanted to install Meister Edel's front adjustable Y-Axis Belt Tensioner but would not fit with CalTechConcepts under tray and cable guard. Removed a small area in the front to fit the larger front tensioner. I made this for the Slim 3mm version of the Tensioner. The Regular version of the tensioner is a bit wider. Now with the gap at the top of the print you cannot utilize automatic vase mode because it needs to travel the gap at the top. I have not nailed down the best way to print this. I tried 0 Top and Bottom Layers. 1 Perimeter. 0% Infill. 80% of print will print as if it's in vase mode, then make necessary jump at the top. When doing this jump my z-seam was in a bad spot and it seemed a bit brittle. Was able to make it fit with some clean up - but not ideal. Maybe you all can find the best way to print.
prusa cable belt tray tensioner mk4 prusamk4
