MK4 Nextruder nozzle change tool

by Legufix · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles716
UploadedNov 1, 2023
⬇ 1.9k downloads ❤ 364 likes 👁 6.7k views

Description

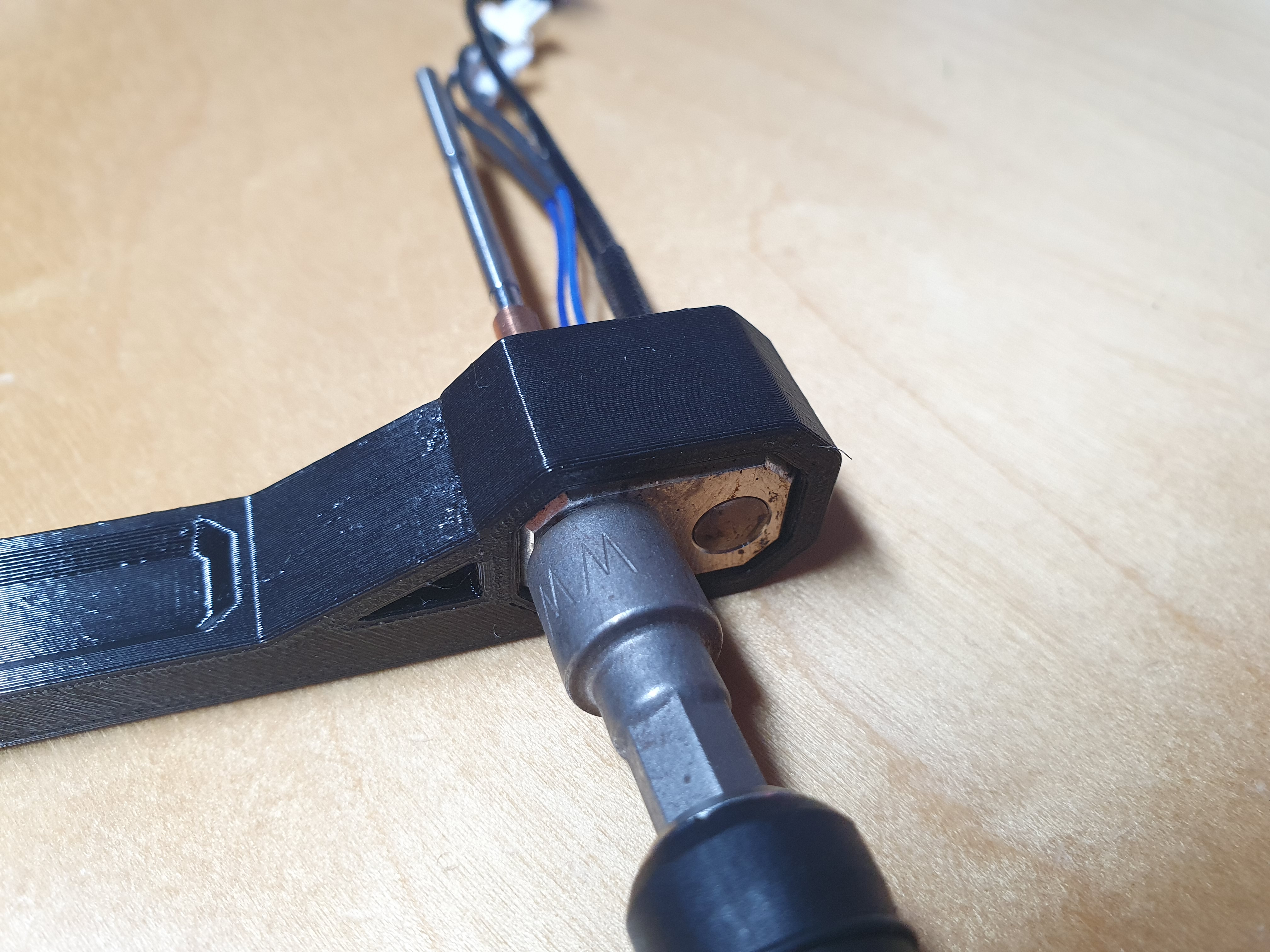

Because changing nozzles with the supplied multi-tool was too wobbly for me, I developed a simple tool to hold the hotend more stable. 📷 Image redacted — claim this model to add your own media As can be seen in the CAD image in cross-section, the tool is designed in such a way that the hotend reaches the stop at the back and cannot slip through. This prevents it from moving during the tightening process. I printed the tool out of PETG with 100% infill and a layer thickness of 0.2mm. With the correct orientation, no support structures are necessary. Update 01.11.2023: Since some users are not so satisfied with the tight fit, I have added a version with higher tolerances and loose fit (file with addition "loose_fit")
