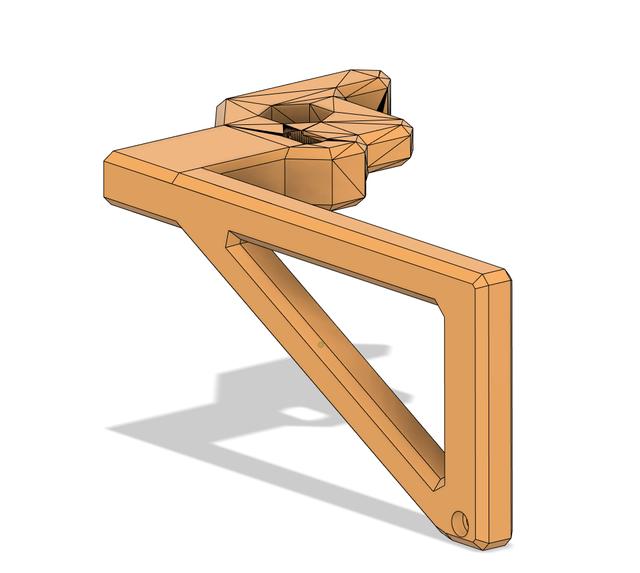

MK4 Raspberry Pi Camera Z-top mount

This replaces your left Z-top, and provides a mount for your Raspberry Pi Camera. You also need the ball mount, which you can find here , an M3 bolt (the ball mount is where the bolt will be threaded), and a Pi Camera case compatible with Sneak's articulating camera case . I've provided the Fusion 360 file (which is mostly parametric) if you want to modify the length and depth (see photos, the relevant parameters are highlighted). Be aware that the longer you make it, the wobblier it will get. The STL file provided here extends 50mm to the left on the X axis, 100mm towards the front of the printer on the Y axis, and 50mm down the Z axis. Printing Use PLA for stiffness 0.4 nozzle / 0.2 layer height recommended Increase perimeters to increase stiffness No supports needed, brim recommended Print like on the picture, (the R1 text facing up) Post your makes! (:
