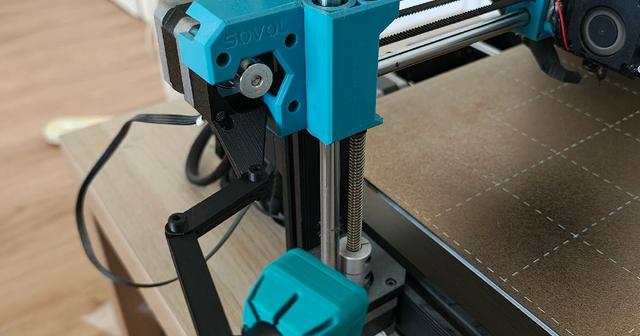

MK4S/Sovol SV06 Plus RPi/ESP32 Arm Cam Mount

This is my take on Ball joint mount for Sovol SV06 Plus/MK4S Camera module. To get the parts together I used 2x M4x10 screws with nuts (M4x8 would probably fit better but that is only cosmetic modification). I printed mine because it was faster then going to a hardware store but I dont remember which exact model I have used (printables is full of metric srews and nuts models of any kind and dimensions). To screw into the Nema X-axis motor the M3x18 should be used as stated in the original but I had only M3x16 and M3x20 the 16mm length is fine even though it is little bit short but the 20mm is too long and cannot be screwed all the way in to hold the mount. The camera module I used is rpi cam v2 and again I printed the enclosure for it about 3 years ago so I dont remember which exact model I used but the one for ESP camera from the original model should fit (I did not changed the ball joint at all) and this seems to be the model, or at least it looks the same and the dimensions measured in fusion seems to be spot on that I probably used for the enclosure (for rpi v2 the "raspicamcover_nolense" version of a front cover). Print settings used: - Filament: PLA - Layer height: 0.2mm - Perimeters: 2 perimeters - Bottom solid layers: 3 - Top solid layers: 3 - Brim: No - Supports: No - Infill: 10% Supported printers: - Sovol SV06 - Sovol SV06 Plus - Prusa MK4S
