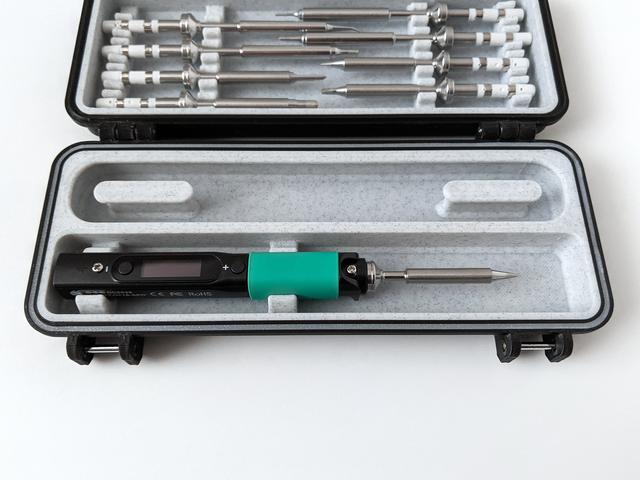

Modified Pinecil & cable insert for "Rugged Multipart Pinecil Case V2" 3D model thumbnail

Modified Pinecil & cable insert for "Rugged Multipart Pinecil Case V2"

by jk_printer · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles19.0k
UploadedJan 20, 2025
⬇ 114 downloads ❤ 28 likes 👁 1.3k views

Description

A modified insert for the " Rugged Multipart Pinecil Case V2 " (large version) to store only the Pinecil and its USB cable. Since I don't have space for the optional soldering iron holder in my printed case, I removed the clamps for that holder and the small hex key from the original insert to make some room for potentially storing small accessories. Otherwise, the model is identical to the original. Print settings Layer height 0.2 mm Line width 0.42 mm 4 wall lines 4-5 top & bottom layers Infill ≥15% Supports not required Approximate print time @ 60 mm/s: 3:20 h
soldering pine64 toolcase pinecil pinecilcase pinecilv2
