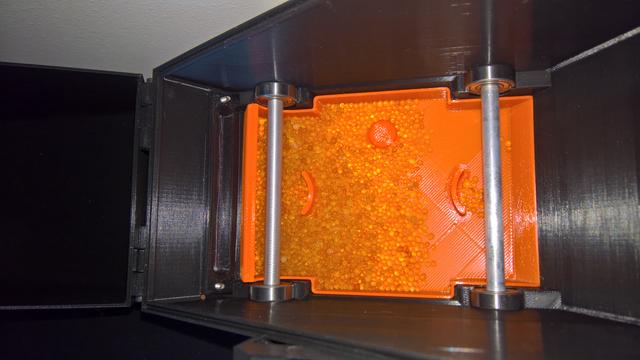

Modified version of the Dry Box Desiccant Tray 3D model thumbnail

Modified version of the Dry Box Desiccant Tray

by Scott C. · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY
Triangles11.1k
UploadedJun 28, 2020
⬇ 173 downloads ❤ 16 likes 👁 2.0k views

Description

When mounting the Dry Box to the LAK table enclosure for MMU2 (which opens 60 degrees on top), it can be a pain to clean up the desiccant. This mod has space for mount screw, stronger and looser fit in the try box, and a catch for desiccant pellets when mounted onto LAK table enclosure lid that tilts open 60 degrees. Added variant v2B which includes spacing for a second mount screw per community request. Print instructions I sliced this using a 0.6mm nozzle, though it should print fine with a standard 0.4mm nozzle. Suggested material: PET or PLA Supports are needed for the small lid on the catch. I used a small support enforcer when printing.
lak

Originally published on Printables
