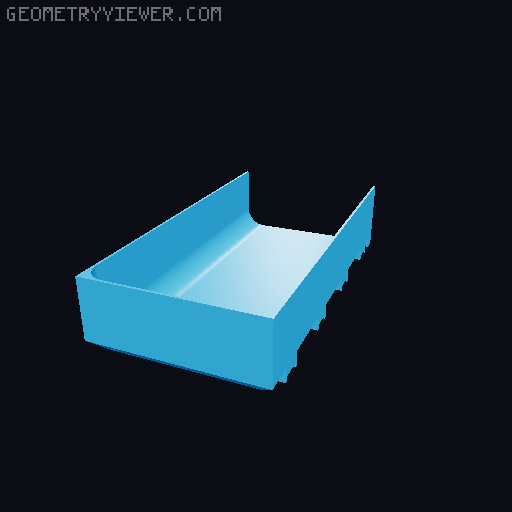

Modular Drawer Organizer Remix

Thanks Fotrik for the model. It is very useful work. Reason for remix was that I wanted to have tilted sides with constant thickness wall and get more usable space in side boxes. You may combine it with the original boxes from Fotrik or generate your own based on the openscad. Example and generated stl parameters: wall thickness 1.8mm height 52mm module size - both x and y: 59mm Tilt of sides: 0 or 8.3mm Collar: 0 or 2.6mm Updates added support for section_half to cut also wide boxes - it returns the left half of the box. Use slicer tool mirror to get right half of the box. section of wide boxes added. You may combine tilted witn not-tilted boxes, while one will be mirrored. You may also combine boxes with variuous x where y and collar are same (e.g. 6x2 and 4x2). Usage tips can be run from command line. Example of command line is in the scad file. If you are missing some stl (e.g. right front corner) then please use mirror feature of your slicer. Some parts may be just rotated (e.g. left or right side boxes). last row or boxes may be larger than just module multiplied by a whole number. You may multiply it by larger number to fit drawer depth. connectors will be in grid, but the end of box will be off grid. Connectors and boxes are compatible with original model provided by Fotrik. If you needed boxes with cutout, go to the original organizer. You may use OpenSCAD in the browser at the https://openscad.cloud/openscad/ - then you may create your stl files without any installation. Prining the organizer for one drawer (example) needed about ¾ kg of fillament. Download connectors from Fotrik :-)
