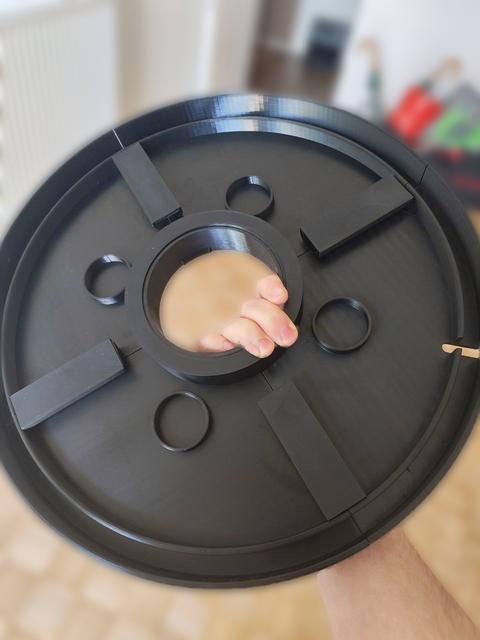

Modular Hydroponic Tower Bucket Lid with no Glue or Bolts

UPDATES: 20.06.2025 Added a test Lid for 5 Gallon Buckets. I used some 3D model buckets as reference because i dont have one at the moment. Maximum inner and outer diameter of the tested bucket models are below in the description. (will add a version without the support rods in the lid later) 20.06.2025 Added a little Different version (v2) of the 5 Gallon Bucket lid with slightly other inner Wall measurements. 21.06.2025 Fixed a mistake in the Lid with Cable hole stl. now (v2.1) 11.12.2025 Changed the Lid for the IKEA Version to be a little bit more stable in the long run (made the Connections longer and a little thicker. Changed the Center Pipe Module Part 1 to have a bigger and stronger Ring for stability (still compatible with all Lid Versions) I modified the lid sections and the module adapter so that no glue or bolts are needed anymore. I also adjusted the size to fit better on my bucket and added height-adjustable support pillars to make everything more stable. it should work with most printer sizes. I tested Prusa Mk3s, Mk4s and Prusa XL. The center module for the other Tower pieces should also work with most other Lids as long as ther is enough space for the ring. The Bucket i use is IKEA PS FEJÖ 32cm Link: https://www.ikea.com/at/en/p/ikea-ps-fejoe-self-watering-plant-pot-white-20039394/ 5 Gallon Version (not tested): I used two slightly different models, as you can see in the pictures above. The largest outer diameter was (31.5cm/12.4inch) and the smallest inner diameter was (28.9cm/11.37inch) . Anything between the two should work. 5 Gallon Bucket Lid differences: Version 1: max Outer wall/lip ~ (12.4 inch/315mm) max Inner wall/lip ~ (11.37 inch/289mm) Version 2: max Outer wall/lip ~ 12 1/4 inch (311.15mm) max Inner wall/lip 11 1/4 inch (285.75mm) 📷 Image redacted — claim this model to add your own media I think the support rods arnt necessary in the Bucket version and could be too short. If you test it please leave feedback so I can change or improve something if necessary. If you need other measurements let me know in the Comments i will try my best :). Thanks Dimensions/Settings Layerhight 0.2mm Material PETG or ASA for Outdoor use Infill 15-25% Perimeters 2-3 No support needed If you like this model or found it helpful pls like it and write a review if you want ^^. Thx
