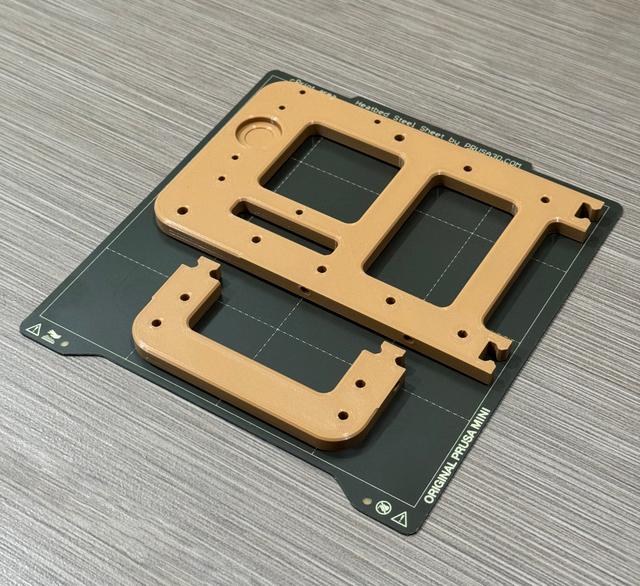

Modular Winder Spool Frame 2 Base for 180mm Mini Printers

Simple split of the 220mm base from @STORM DESIGN's Modular Winder Frame 2 so that the project can be completed on mini printers with 180mm beds like the Prusa Mini, Bambu A1 Mini, Voron Micron, Rat Rig V-Minion, etc. No glue required - when the project is assembled, the two pieces will be joined together by the other bolts. Notes: The 220mm version of the base was chosen for compatibility with the Stand for Bambu Lab Filament Spool Switcher & Winder There is a 0.15mm clearance between the locking tabs and keyholes. You can test your printer using the included FIT_TEST_Modular_Base_220_Split.stl (It worked for me using PLA+). The other large piece in the project ( Winder Spool Frame 2 - Arm Gear ) already fits a 180mm bed. In the slicer, rotate it around the Z axis by 7.61 degrees so that the angled edge is parallel to one side of the bed (turn OFF skirt and brim to fit). 📷 Image redacted — claim this model to add your own media
