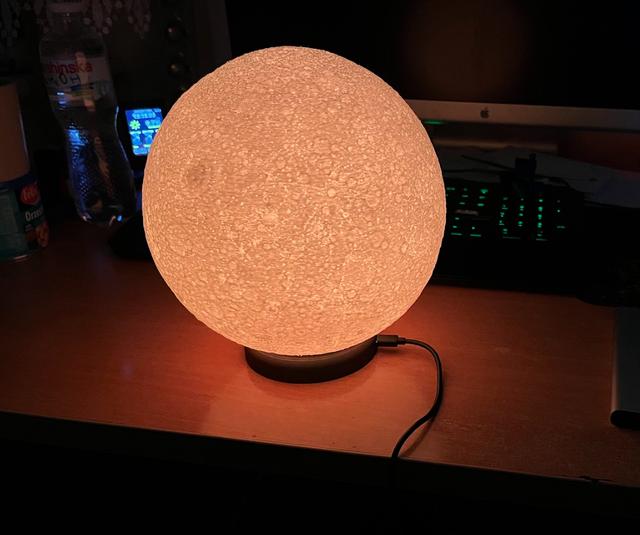

Moon Stand for WLED in 8266 3D model thumbnail

Moon Stand for WLED in 8266

by Alexeyvik · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles4.0k
UploadedJan 4, 2024
⬇ 29 downloads ❤ 8 likes 👁 390 views

Description

I reworked my project to use the addressable led tape (4 segments of three crystals) ws2812b and the d1 mini esp8266 module. Also, during printing, you need to insert a microusb module with soldered wires into the base - for this I added two gcode files - one with the M601 pause - but for some reason I had glitches with this and I cut the second file with the code M600 - color change, which I also added. Also added two test gcodes so you can check first if your pause works and also to check if your microusb module fits. List of modules I used: 1. D1 mini esp8266 2. ws2812 tape 3. Micro USB Dip I installed the firmware from the wled install page through the web interface. I added the connection diagram to the photos If you have any questions, please ask
