Moss Pole Drip Water System
by kruselandon12 · via Thingiverse
| Format | STL |
| Category | Home |
| License | CC BY-NC |
| Triangles | 22.1k |
| Uploaded | Apr 11, 2026 |
⬇ 18 downloads
❤ 3 likes
👁 53 views
Description

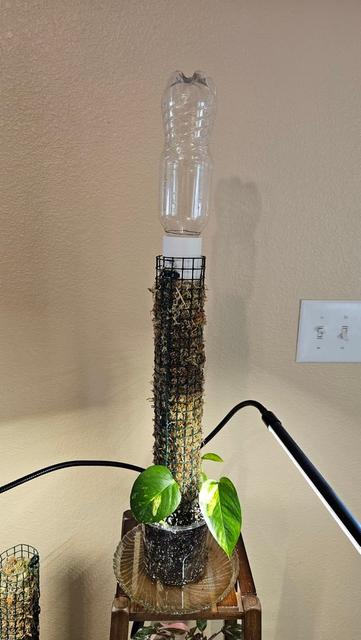

This is designed to be inserted in the top of a moss pole that's about 2in in diameter. Both models have a PCO1881 thread adapter on them to screw onto a standard soda bottle for easy watering. The Dual Drip model is designed to have 2 distinct drip speeds. If you attach to a bottle and flip it over, it will drip at a slow speed into the moss pole. However, if you look inside the cup, you will notice a built in tube running up the side. If you fill the cup above the top of the tube, it will act as a siphon and more quickly drain the water from the cup. The same effect can be achieved by attaching a bottle and then squeezing it until the water rises above the siphon line. I got the idea from a Pythagorean cup which siphons liquid from the drinkers cup if the are "greedy" and fill the cup too high. Its kind of overkill and unnecessary but it was a cool thought experiment and if you want, you can try it yourself. Print upside down and add support for the bottle thread adapter. The rest should not require support.
Originally published on Thingiverse
