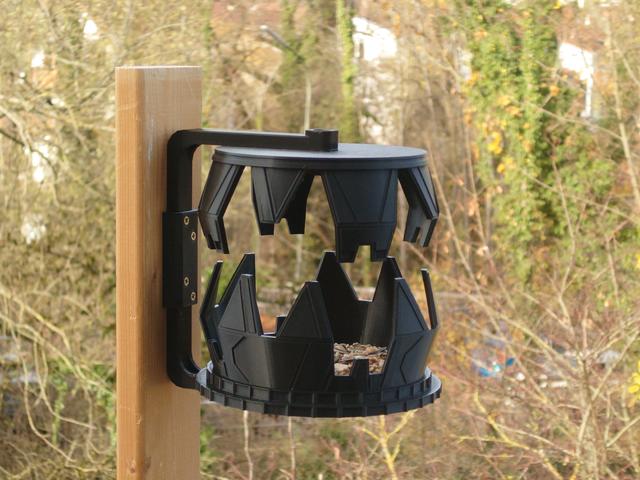

Mount for Bird Feeder: Darth Vader's meditation chamber 3D model thumbnail

Mount for Bird Feeder: Darth Vader's meditation chamber

by MLKton · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC
Triangles4.1k
UploadedNov 20, 2023
⬇ 42 downloads ❤ 16 likes 👁 289 views

Description

This is a mount for the Bird Feeder: Darth Vader's meditation chamber. First off: Please note that this design fits a 160% scaled version of the birdfeeder. If you make changes, you'll have to see if the bolts, nuts and secure-bolts will fit and hold up tension or substitute accordingly with metal bolts and nuts (the securing nuts are not necessary, just help manually fastening everything and keeping the larger plates stable; but can be replaced with metal washers). Printing: I printed everything using PLA+ , a .4 nozzle, and 0.16 layer height; no supports needed with the orientation provided in the files. Since this print is supposed to be outside during winter and hold some weight and tension, lamination should be as good as possible so watch speed and cooling according to your experiences with your own printer; also PET might be a better choice. arms (2x) bolts (2x) nuts (2x) securing nuts (2x) mount bracket (1x) I hope you'll enjoy this, or at least that it will work as well as it does for me (allthough there are still some degrees to drop). I'm working on a version, where you can lower and rise the top part. Then you could close it in case of really bad weather, and adjust the height depending on what birds (size) you want to be able to feed. As soon as it's ready, I'll add it to this model, as an additional option to print it. It will probably be a add on to the existing design (so only additional parts will need to be printed, not the complete thing).
bird holder mount birdfeeder
