Mounting Bracket For 20mm Round Rocker Switches

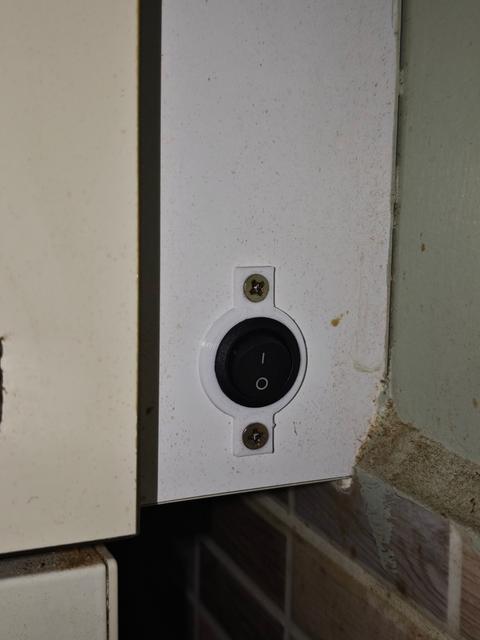

This is a mounting bracket for 20mm round rocker switches, specifically designed for seamless integration into wooden panels and cabinets, as shown in the photos. Key Design Features: Optimal Switch Fit: The inner diameter is designed as 20.5mm to allow a perfect snug fit for a standard 20mm switch, ensuring the switch's snap-in tabs engage firmly and the switch sits flush with the bracket and the panel surface. Wiring Clearance: It creates crucial volume on the back of the panel to facilitate easier and safer cable management for the switch connections. Countersunk M3.5 Screw Holes: The bracket features two countersunk screw holes designed for M3.5 (Metric 3.5) screws. This ensures a flush and secure attachment to the panel. Applications: Under-cabinet lighting switches (LED strips, puck lights, etc.) Custom furniture with integrated lighting or power switches Workspace or electronics workbench panels Custom dash panels for automotive or marine applications (with proper switch type) Print Suggestions: Material: PETG is highly recommended for its strength, durability, and better heat resistance compared to PLA, especially for applications where the switch might generate some heat or for long-term reliability. Important Note: When referencing the dimensions in the photos, please note that some of the displayed measurements are radius (partially indicated), which may be misleading if mistaken for diameter. Always refer to the inner diameter being 20.5mm (as designed).
