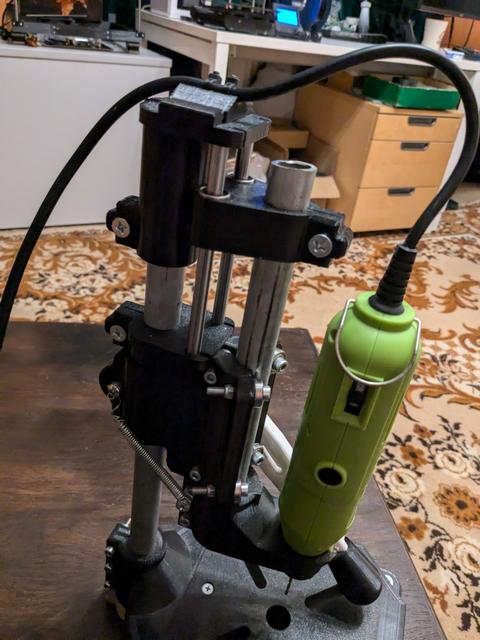

Movement stabilizer for DREMEL drill press 3D model thumbnail

Movement stabilizer for DREMEL drill press

by Tai-Min · via Printables
FormatSTL
CategoryTools
LicensePublic Domain (CC0)
Triangles24.6k
UploadedDec 3, 2024
⬇ 41 downloads ❤ 10 likes 👁 496 views

Description

Additional parts: 2x 120mm (roughly) 8mm smooth rods 2x LM8UU bearings 3x M5 x 30mm screws 3x M5 nuts Manual: Press fit bearings into drill_guide-Press_Main.stl and slide onto rods before placing the prints on the press itself. Slide drill_guide-Base_Bottom.stl all the way down, add the rods (might require pressing them into holes with some force) the cover it with drill_guide-Base_Top.stl. Ensure that the guide moves smoothly before tightening the parts to pipes.
drill dremel drillpress dremelattachment
