Multiconnect for square pegboard
by Darth_Hawk · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC-SA |
| Triangles | 1.1k |
| Uploaded | Jun 7, 2025 |
⬇ 2 downloads
❤ 4 likes
👁 133 views
Description

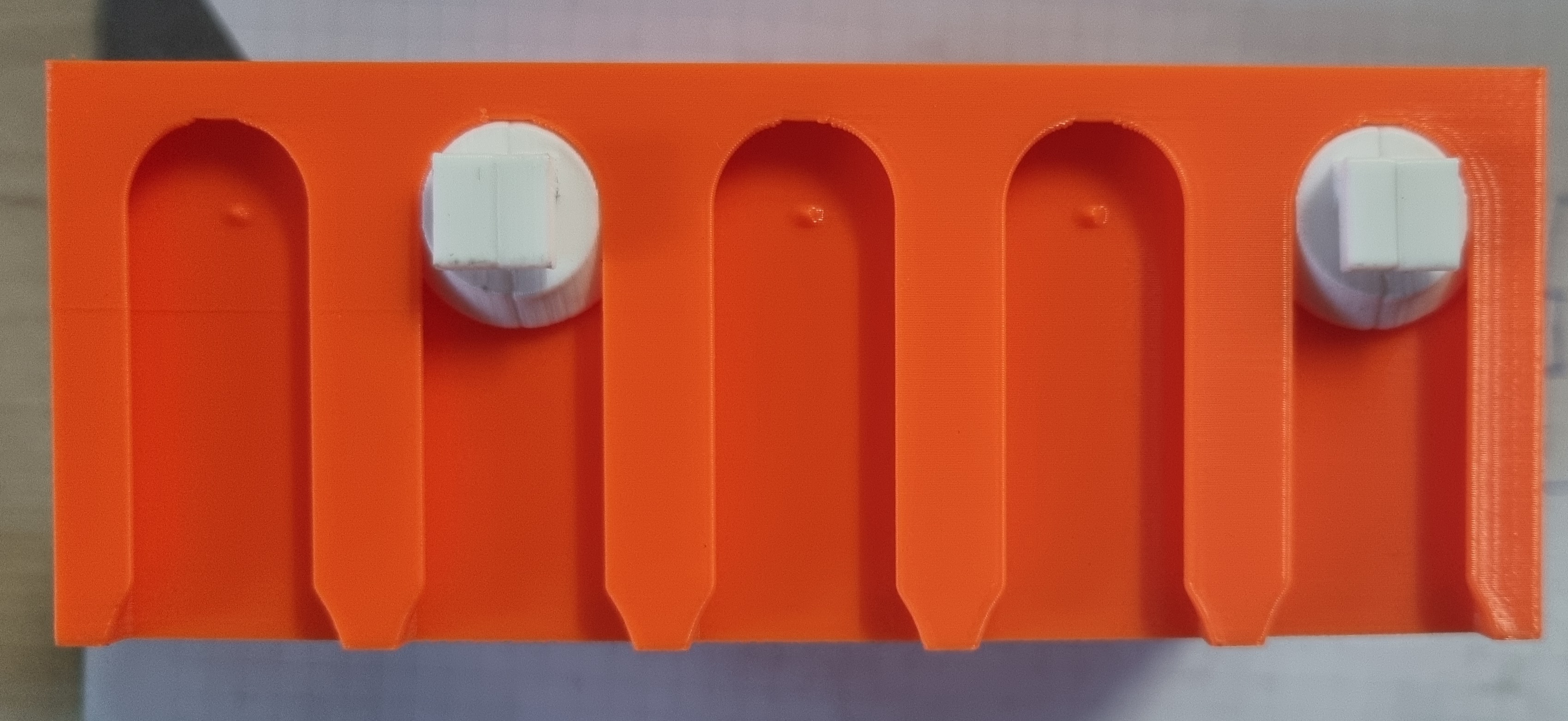

Original pitch between 4 multiconnects is 75mm, my pegboard has 76mm between 3 pegs. You can use single, 4 or 7 multipoint connectors wide. Parts have offset in both directions, one part is centered for single multiconnect. For 4 connectors wide you can use: Centered part with 1mm offset part or two 0,5mm offset parts. For 7 connectors wide you can use: Two 1mm offset parts with centered part in the middle. Print in place folded for better strength. I use a lighter for the seam before I start folding, no chance of breaking apart that way. Print in 99% scale if the connection is too tight.
