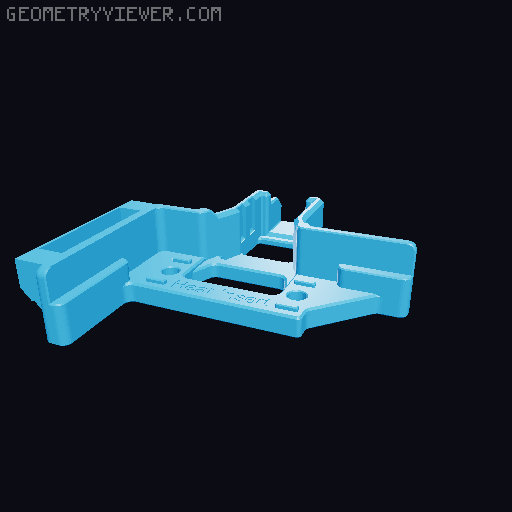

N4/N4pro bed aligner, with wiper and Mellow Fly ADXL345 3D model thumbnail

N4/N4pro bed aligner, with wiper and Mellow Fly ADXL345

by Craitex · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles8.1k
UploadedFeb 13, 2026
⬇ 5 downloads 👁 20 views

Description

I didn't find any models here with support for both Mellow Fly ADXL345 and A1 nozzle wiper, so I made one. The model is a remix of @Joushou's bed plate aligner. Model modified in Autodesk Fusion. When printing , it does need support just under the nozzle wiper. I used Elegoo PETG Pro, 15% infill and 0,2mm layer height. I used two M3x4x4,2 heat set inserts for the accelerometer and also two M3x8mm bolts to tighten it to the mount. To attach the model to the bed i used two M3x5x4,2 heat set inserts and for the bolts i used the ones already tightened to the bed. You must remove the plastic part that holds the Y-axis cable underneath the build plate first. The fitment might be quite tight, meaning the bed might hit the frame. When installing the model to the bed, apply force so that it is pushed up against the build plate. I also made a macro for the Neptune 4 Pro running OpenNept4une firmware. You just need to add the macro to user_settings.cfg. This macro is for the A1 mini wiper. You can also change the coordinates if you want to use this macro with the regular A1 wiper.
upgrade usb 3dprinter accelerometer fly elegoo adxl345 mellow bambulab bedplate neptune4pro neptune4
