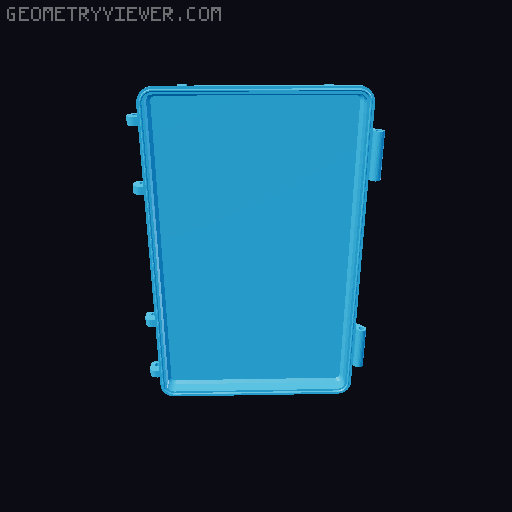

NANO VNA-H Rugged box [Remix] 3D model thumbnail

NANO VNA-H Rugged box [Remix]

by Marco02Arduino · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles4.5k
UploadedNov 17, 2025
⬇ 104 downloads ❤ 18 likes 👁 536 views

Description

I bought a Nano VNA-H and i needed a rugged box that could allow me to bring it anywhere without warryng about breaking it, so I searched for a well known rugged bux design and I decided to add a custom insert that allowed me to store all the original accessories plus a coupple more adapter for my BNC and SMA antennas. PS: I added a 1cm soft foam rubber sheet in the lid to keep all the accessories in ther place even when tossed around. Update V2: I enlarged some holes because some adapter fitted too tight, I didn't had the chance to print this revision yet, so it's marked as beta design. PS: If you have already printed the V1 you can just reprint the bottom part of the box, the other parts are unchanged. For printing recommendations and assembly instructions I suggest taking a look to the original design. https://www.printables.com/model/258431-rugged-box-parametric Credits to the original designer Whity for this great rugged box design.
nanovna nanovnah
