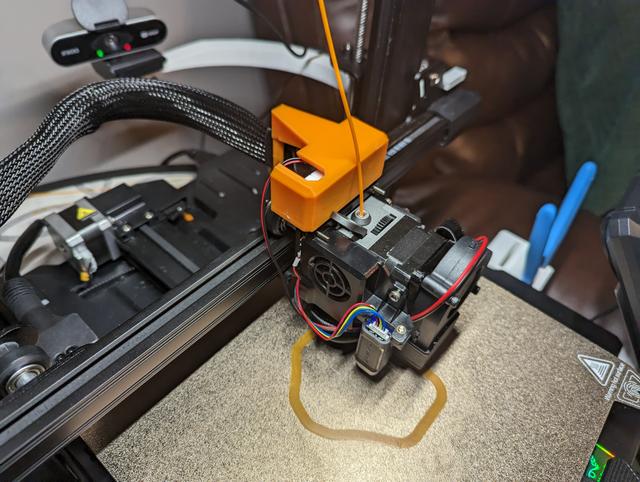

NBR Modder Board Front Cover with Vertical Cable Guide/Holder/Stress Relief for Ender 3 S1 Pro 3D model thumbnail

NBR Modder Board Front Cover with Vertical Cable Guide/Holder/Stress Relief for Ender 3 S1 Pro

by iListen2Sound · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles2.3k
UploadedJan 29, 2023
⬇ 262 downloads ❤ 26 likes 👁 2.2k views

Description

This is a combination of Nathan Builds Robots ('s?) Modder Board Front Cover (extra clearance version) and Bananenminister 's vertical ribbon cable guide. NBR's MB Front Cover is mirrored because the hole prevented me from moving the bridge I made to connect it to the guide to the right since it collides with the left-side frame when the extruder is homed. This will work for now. But yeah, the sharp angle the cable goes on the ender 3 S1 Pro stresses me out. Update: I realized that the clamp was pressing the cable against one of the wheels on the extruder. I raised it in V2 and also moved it back a little towards center again. Cable still touches wheels but only lightly instead of being pressed.
cablemanagement ender3 cableprotector cableholder cableguide stressrelief ender3s1 ender3s1pro modderboard nbrmodderboard
