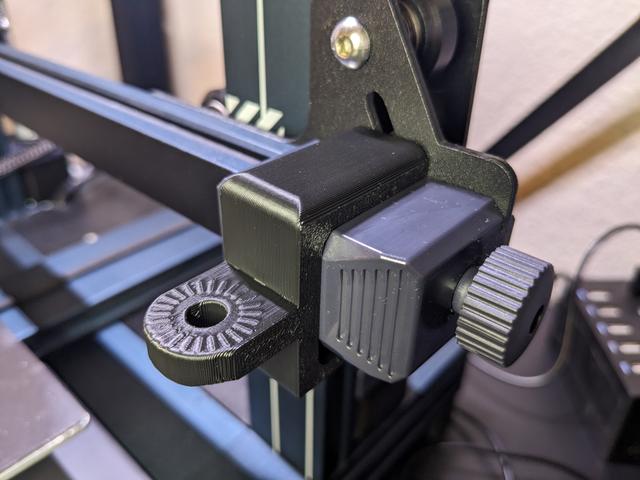

Neptune 3 Pro Z Axis Camera Mount 3D model thumbnail

Neptune 3 Pro Z Axis Camera Mount

by Lllotus · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles23.5k
UploadedFeb 9, 2023
⬇ 770 downloads ❤ 179 likes 👁 3.9k views

Description

On the Neptune 3 Pro, there are two unused slots on the right side of the Z axis. This is a simple bracket that utilizes those two slots for mounting a camera to the Z axis. The bracket provides a male linkage in either horizonal or vertical orientation. Get the rest of your linkages and camera mounts from the famous Articulating Raspberry Pi Camera Mount by Sneaks https://www.printables.com/model/3407-articulating-raspberry-pi-camera-mount-for-prusa-m and its remixes I used M3x8 screws but I think you can use any length from 6-10mm. No supports required. I didn't model the threads since they're so small and easily cut by the screw itself. You may want to run a screw in and out once before installing since the space is a little tight I have not tested on the Neptune 3 Plus or Max. Please double check the measurements before printing and let me know if there are any issues! Happy to make the female linkage option upon request
raspberrypicamera picamera elegoo zaxismount elegooneptune3pro neptune3pro neptune3max neptune3plus picameramount
