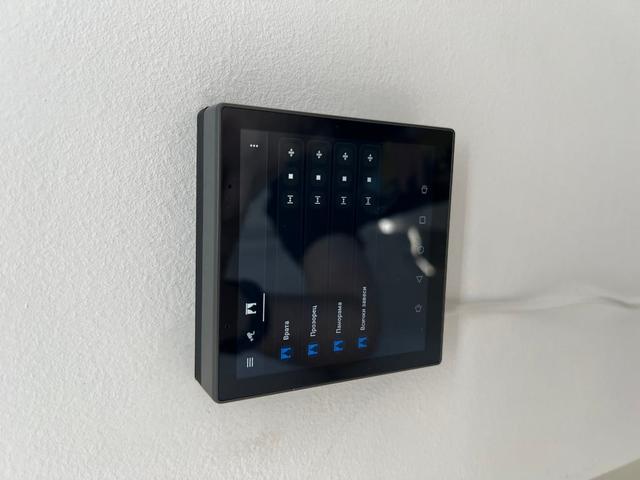

NSPanel Pro Slim Wall Mount

This is a low-profile wall mount for the NSPanel Pro. To install it, you will need to remove the original power supply and power the device externally using a cable and a separate 5V adapter. You’ll reuse the metal frame from the included power supply adapter. The installation requires disassembling the NSPanel Pro, unsoldering the 8 pins, and soldering two wires in their place. It’s fairly straightforward if you have basic soldering experience. The bottom four pins are GND and VCC. The device runs on 5V and typically consumes less than 5W at peak, so a 1A adapter is more than sufficient. There is a dedicated hole in the mount for routing a USB cable. However, if you have low-voltage power wiring in the wall, you can wire it directly for an even cleaner look. The mount is 3D-printed in black PLA+, which blends nicely with the NSPanel’s design.
