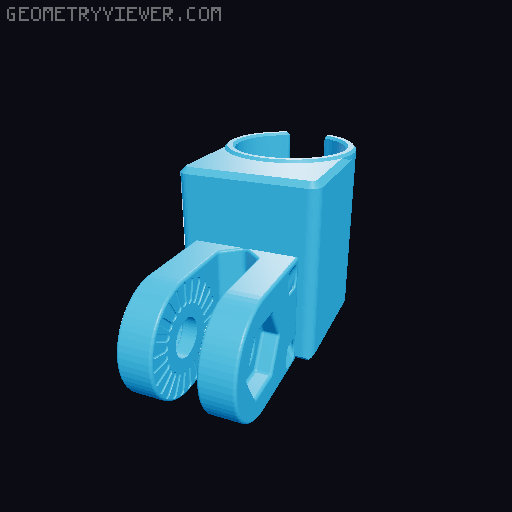

Olight S1R/S2R flashlight arm
by Kurt · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY |
| Triangles | 59.1k |
| Uploaded | Dec 10, 2020 |
⬇ 63 downloads
❤ 9 likes
👁 841 views
Description
A way to utilize the flashlight in a static pose for hands-free lighting. I keep going back to Sneaks and his articulating arm design for most of my models because it works so well! I designed the flashlight mount base, the mount, and mount v2 to utilize 12x3mm neodymium magnets for securing the light and base. Even when using the S2R, you really only need 2 magnets on the base to hold the flashlight sufficiently. The other arms/accessories for this print to work can be obtained from the original post by Sneaks. The pocket on the bottom of the S1R mount/S1R mount v2 was originally designed for a larger ceramic magnet, but the 12x3 neodymium will work in its place. Print instructions Printed in Prusament and Hatchbox PETG with .2mm layer, 3 perimeters, 240c nozzle, 85c bed and other standard settings of Prusament PETG profile in PS.
Originally published on Printables
