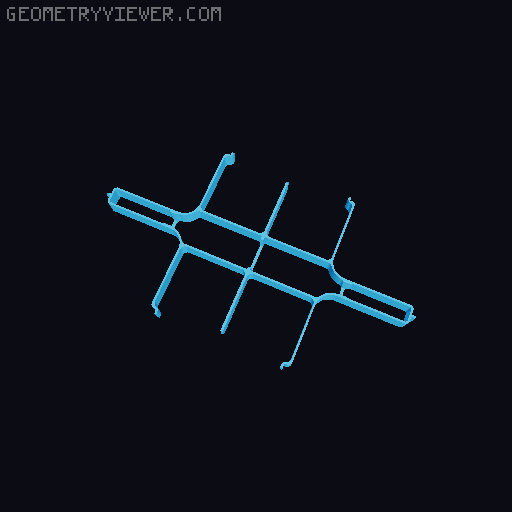

Omnifixo - Field Box with divider & snap-fit plate
by Kayu · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC |
| Triangles | 8.4k |
| Uploaded | Nov 18, 2024 |
⬇ 33 downloads
❤ 9 likes
👁 361 views
Description
First, thanks to the creator of the original model for coming here to look at this print. Second thanks to the improved version creator. Did not print one of them, but added slightly improved ones I thought I needed. The first change I made is that I added snaps for the plate (fun fact: you don't need them... the magnets hold the plate perfectly in place), but anyway.... I like snaps :p The second improvement is: if you use the loop that is attached to the plate, this version grants notches so that the loop doesn't push the plate up a bit. Because the model I remixed is shared on onshape, here is my customization: https://cad.onshape.com/documents/179646485ff878c8bc9c5621/w/3532ca52a635eec823479c55/e/e7c959e8735d22e76db7dc22?renderMode=0&uiState=673b74b86f46a33904a12eb7
