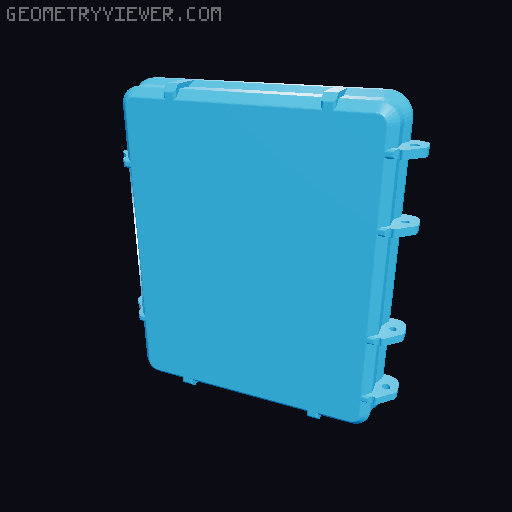

OnStep Rugged Box for MaxPCB V4 3D model thumbnail

OnStep Rugged Box for MaxPCB V4

by Archer60x · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles4.4k
UploadedApr 17, 2026
👁 9 views

Description

This is a remix of the Rugged Box Parametric to fit the MaxPCB4 and MacESP4 OnStep PCBs. It need some 32mm M3 bolts and some lock nuts for the hinges and Latches. There are 4 holes for GX12 connectors. Uses a 10x15 mini rocker switch similar to this There is also the 48mm x 48mm hole pattern for the different brackets i made in this project. Synta, 2inch round leg, vixen and losmandy brackets.
