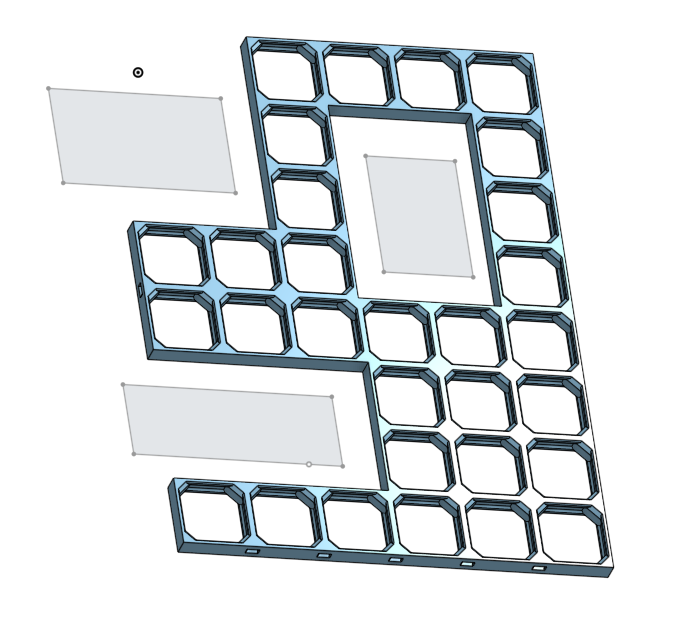

openGrid parametric generator w/ custom cutouts

DONE ✅ Custom sizes ✅ Drawable cutouts ✅ Straight or threaded screw holes ✅ Selectable screw hole locations ✅ Multiboard-compatible screw holes ✅ Specify dimensions in mm TODO Fill extra space Stacked printing <Suggest more in comments below> Instructions Parametric implementation of openGrid in OnShape. Supports arbitrary width, length, Lite/Full, cutouts. If you need video instructions, let me know in the comments. I'm going to assume you've never used OnShape. Follow this link . Step 1 📷 Image redacted — claim this model to add your own media If you intend to use cutouts or selectable hole locations , you will need a free account. Sign in and make a copy of the document. Other features can be used without an account, just by following the above link. REMINDER To update to the latest version of this generator, you'll have to make a new copy from the above link Step 2 Choose parameters on the top left 📷 Image redacted — claim this model to add your own media Step 3 If you enabled Cutouts above, you need to edit the cutout sketch. Double-click on the sketch called “**EDIT CUTOUTS**” in the left column 📷 Image redacted — claim this model to add your own media Step 4 Press N for top-down view then F to fit to screen Click on the “Final” button in the sketch dialog for realtime preview To draw a cutout rectangle, press G then click and drag To remove an existing rectangle Press Esc for selection mode Click and drag to select the rectangle Press delete To undo, press Ctrl+Z You can add as many cutouts as you want. When done, click on the green checkmark ✅ in the sketch dialog Step 5 Right click on the generated grid and select export If you want video instructions, let me know in the comments.
