openGrid Triangular Tiles (2x2 - 12x12)
by forsaken_candy · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-SA |
| Triangles | 138.7k |
| Uploaded | Dec 22, 2025 |
⬇ 24 downloads
❤ 11 likes
👁 105 views
Description

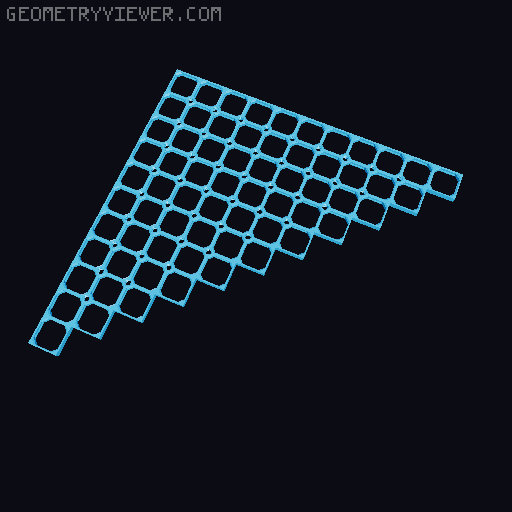

openGrid tiles in the shape of isosceles triangles, each with the following variants: Lite and full thickness. No holes, straight holes, and M6 printed threads. Chamfered or not. Chamfered versions enable additional holes along the diagonal. These were created using my openGrid parametric generator using custom cutouts. Sizes 2x2 to 12x12 (56x56mm² to 336x336mm²)
AI Analysis: This object is a collection of interconnected triangular tiles forming a larger surface pattern. It is designed to fit together to create a larger, continuous shape. The arrangement creates a tessellated surface.
