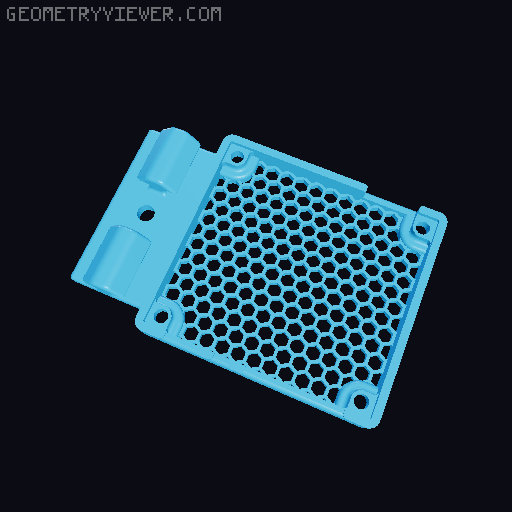

Orange Pi Zero 3 Case

This is a simple case I designed for the Orange Pi Zero 3 . You will need to print the base and select the top cover of your choosing. Personally, I like the external antenna versions. Simply run the antenna wire in the slot above the SD card and place the antenna in the retention slots. Required Hardware: 4x - 20mm M3 Socket Head Cap Screws 4x - M3 Nuts Print settings: Layer Height: 0.2mm Wall Thickness: 1mm minimum Top/Bottom Thickness: 1mm minimum Infill: 100% (recommended) Avoid Crossing Perimeters (Combing): Enabled (reduce stringing in hex pattern) Supports: I recommend supports only for the bolt/nut recess holes. Adhesion: If you have poor adhesion use a bit of glue stick Modification requests may be entertained. I am considering adding additional GPIO/Debug UART Access, Heat-Set insert versions, etc. Please post your makes and let me know how it works out for you! ~~~~~~~~~~ Update Log ~~~~~~~~~~ 8/13/2023 -Modified extrusion mount geometry to work with V-Slot + T-Slot + Easier Printing 8/5/2023 - Added options to mount to 3D printer v-slots with M3 or M4 8mm bolts 8/4/2023 - Added thicker HEX pattern for those using nozzles larger than 0.4mm
