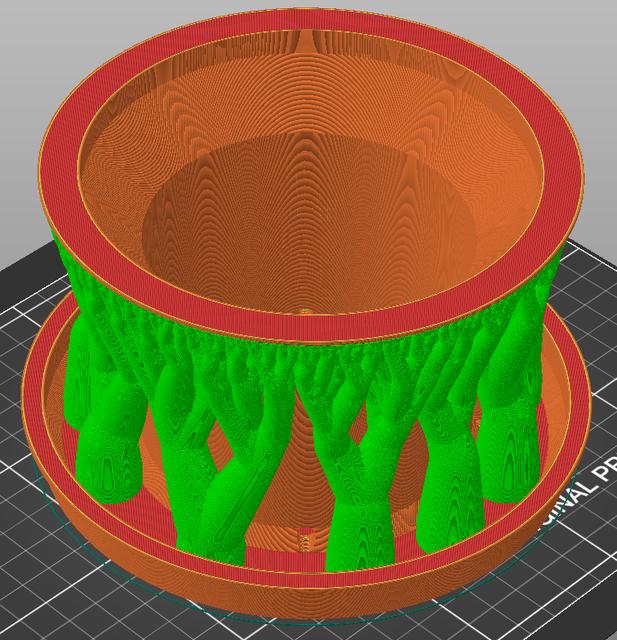

Organic Support Pot with Drainage 3D model thumbnail

Organic Support Pot with Drainage

by Nononono · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC-SA
Triangles13.1k
UploadedSep 8, 2023
⬇ 190 downloads ❤ 17 likes 👁 786 views

Description

Same as “Tree support planter pot” but with 8 drainage holes to the outer tray. I added the instructions below from the comment section for easy access: 1) Paint supports around the rim (I like the triangles option) 2) Under Print Settings -> Support Material -> Options for support material and raft Set "Top contact Z distance" to "0 (soluble)" 3) Set the following under "Organic Supports" - Maximum Branch Angle = 25 - Preferred Branch Angle = 20 4) Make sure "For Support Enforcers Only" is selected on the main page. You may have to tweak the settings on step 3, but after a few trial and errors, I believe those listed are near the threshold needed to both maximize the tree-like shape and keep them inside the pot.
