Original MINI Prusa Enclosure 3 Sheet holder with Tool Remix
by JBinFL · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 6.8k |
| Uploaded | Oct 12, 2024 |
⬇ 26 downloads
❤ 3 likes
👁 240 views
Description

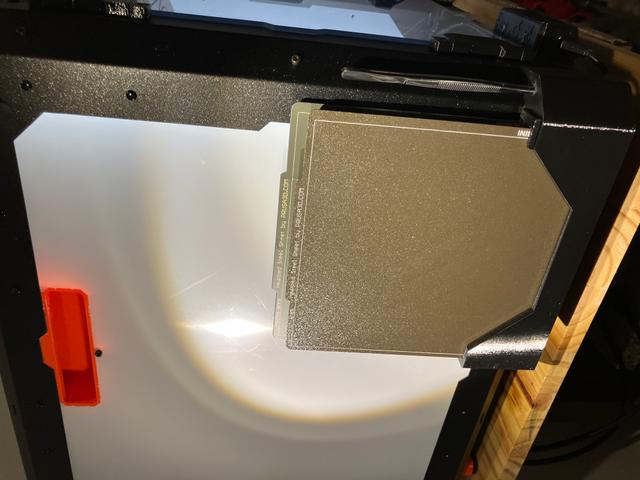

I remixed the 3-sheet holder from the original model (which is a remix itself) to reduce it in length and fit the holes for and attach to the Original Prusa MINI enclosure to hold MINI steel sheets. Note: this model is too big to print on a mini as is, you have to print on a MK2 - MK4 so its application is limited to those that have a full size printer in addition to a MINI printer and Mini enclosure. I suppose you could chop a bit off the end to fit it on a MINI print bed, but then one end would be fully open or not enclosed… that should work, but i did not try it so do so at your own risk. In my search, I did not find a MINI Sheet holder for a MINI enclosure. There was already a remix for a sheet holder for MINI sheets for the full-size enclosure. This is a remix for the MINI enclosure to hold MINI sheets. Both right and left models are provided. Additional parts needed (spares from Enclosure assembly) / instructions: You will need at least two M3nS nuts and either 2 M3X8 bolts or 1 M3X8 bolt and one M3X20 Bolt if you have the optional LED accessory and want to mount this to the left front of the MINI enclosure. I removed the lower right front bolt that goes through the LED and replaced with a M3X20 bolt inserted from the inside to outside to attach through the LED strip. Also, because the Mini enclosure is assembled with M4X5R screws on all profile corners, you need to remove 1 M4X5R from the outside of the lower corner and screw it in from the inside of the enclosure. See relocation picture.
