Original Prusa Enclosure top-plug-center Passtrough with Magnets 3D model thumbnail

Original Prusa Enclosure top-plug-center Passtrough with Magnets

by Gusi · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles4.6k
UploadedMay 13, 2023
⬇ 106 downloads ❤ 27 likes 👁 956 views

Description

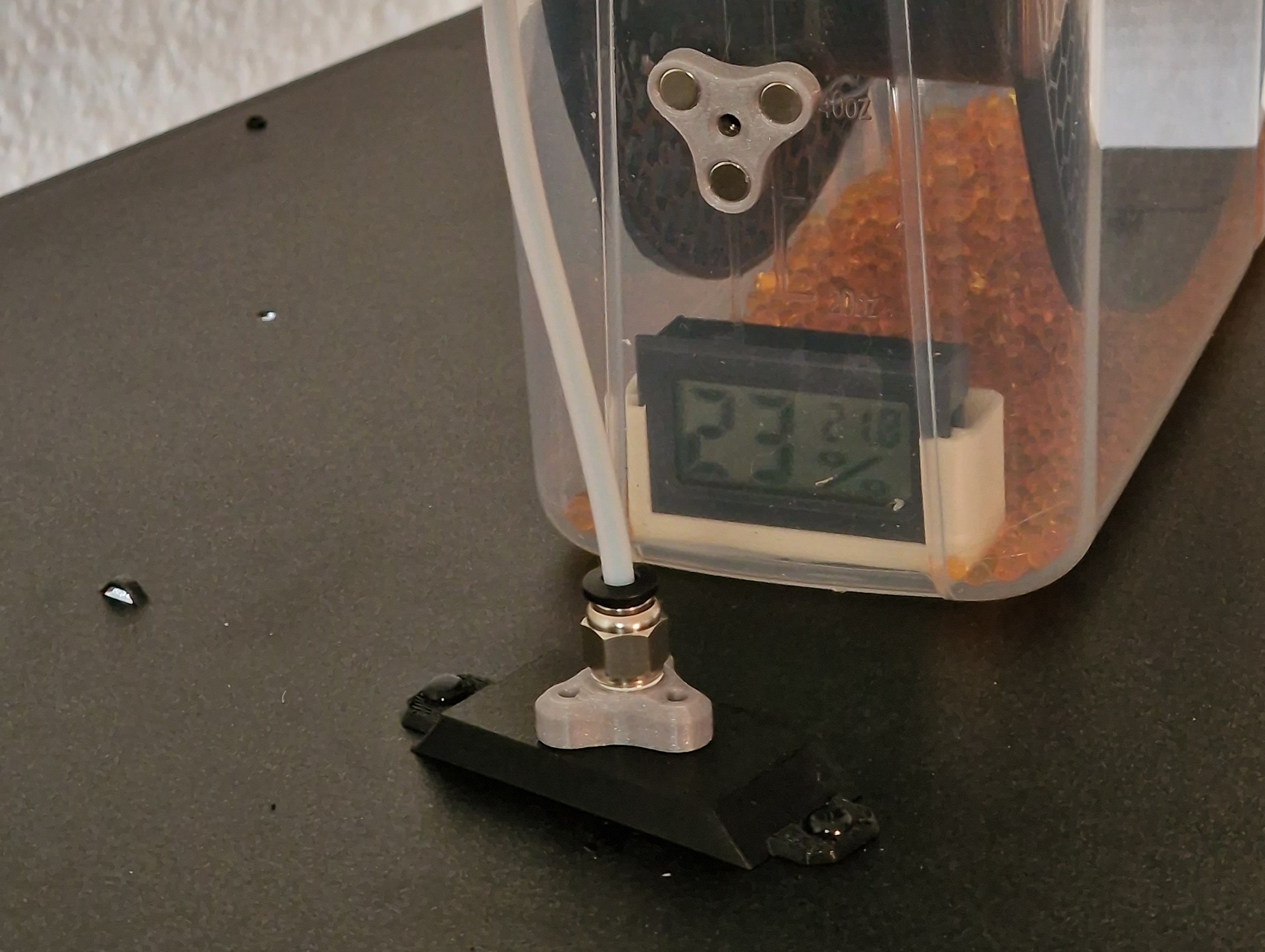

I wanted to ensure a completely closed path from my Drybox into my Enlosure and to the Printer. To be easily able to open the bowden without effort I decided to go for the https://www.printables.com/model/32368-join-ptfe-tubes-together-magnetically solution, a well designed magnetic coupler, that I merged with the top-center cover of the enclosure. From the inside only a PC4-M6 connector was possible, a M10 connection would have been too wide to insert it from above. The 6x3mm round magnets fit snugly and should stay inside even without glue, I use the N52 variant of Neodyme Magnets, that is the strongest type you can possibly get, and the magnets stay bravely in the holes.. For the print I activated support but lowered the angle for automated support to 40%, so the support will only be under both ends and not in the magnet holes. You have to place the magnet side on the print bed for slicing, the STL file should be oriented accordingy.
