Pacific DL-150 Base - Modified 3D model thumbnail

Pacific DL-150 Base - Modified

by nhecht25 · via Thingiverse
FormatSTL
CategoryOther
LicenseCC BY-SA
UploadedMar 25, 2026
⬇ 23 downloads 👁 19 views

Description

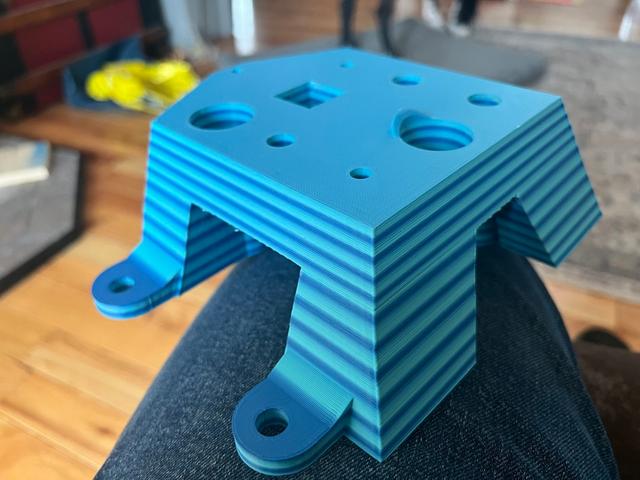

This is the Pacific/Hornady DL-150 base that has had the primer seat station upgraded to the DL-155 primer seater and I added a second shell holder space for the pre-crimp station. I printed with 100% infill with PLA+ and it is very solid. I plan to use with 28 gauge dies, not sure how it will hold up to larger gauges but you can certainly try. I've also included the top and bottom piece for the primer station. You can order the necessary spring from McMaster-Carr: Compression Spring, 0.75" Long, 0.720" OD, 0.560" ID, Packs of 12 - SKU 9657K679 ( https://www.mcmaster.com/products/9657k679/ )
DL-150 DL-155 hornady pacific press shotgun shotshell

Originally published on Thingiverse
