PackUp + Lables Nesting Bin Remix for Milwaukee Packout
by MrGreaterThan · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC-SA |
| Triangles | 4.9k |
| Uploaded | Sep 3, 2024 |
⬇ 409 downloads
❤ 79 likes
👁 2.3k views
Description

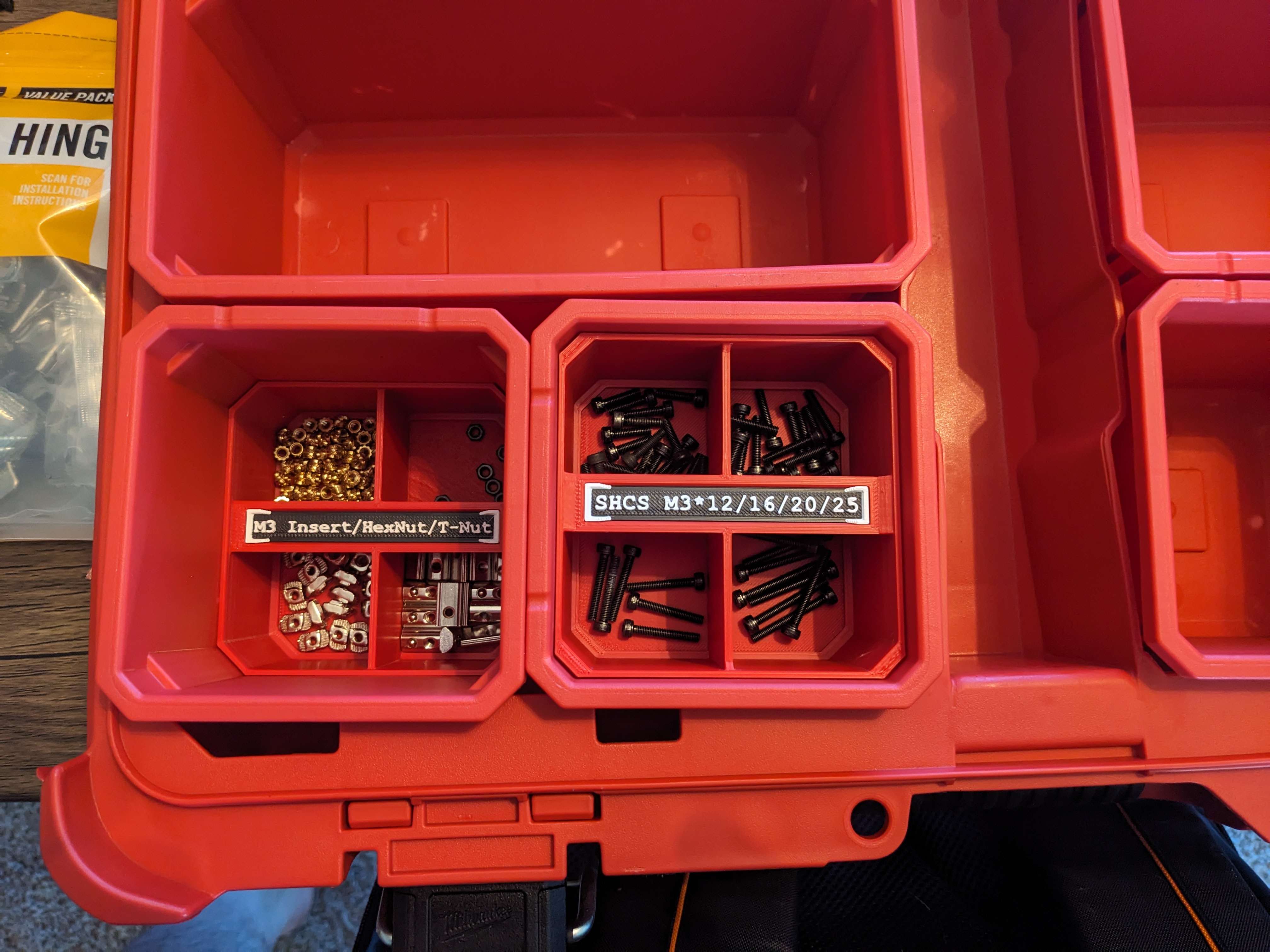

Update: I have made my own set of bins for Packout. It includes double-width bins and a ton of different divider combinations. It's also free for commercial use. Click here to check it out! @Joshed did a great job on the original PackUp bins but there were a couple of details I wanted to improve. Mainly I wanted a way to label the bins in a way that is more readable and not permanent. I've added a slot to the bins where a custom printed label can be snapped into place. This allows you to use PrusaSlicer's new-ish text overlay feature to create nice and readable custom labels. See here for text embossing instructions. I've also adjusted the bins to leave less space for parts to migrate between the bins. The top bin now sets directly onto the lower bin with nearly no gap and the top bin is nearly flush with the lid of the Packout organizer. The labels in the previews are printed with a 0.4mm nozzle using 0.3mm extrusion widths. If you need to fit more text a 0.25mm nozzle will get you there.
Originally published on Printables
