Parametric BSPP Union Nut / Female Thread Nut Generator – Custom G Thread Coupling Nut

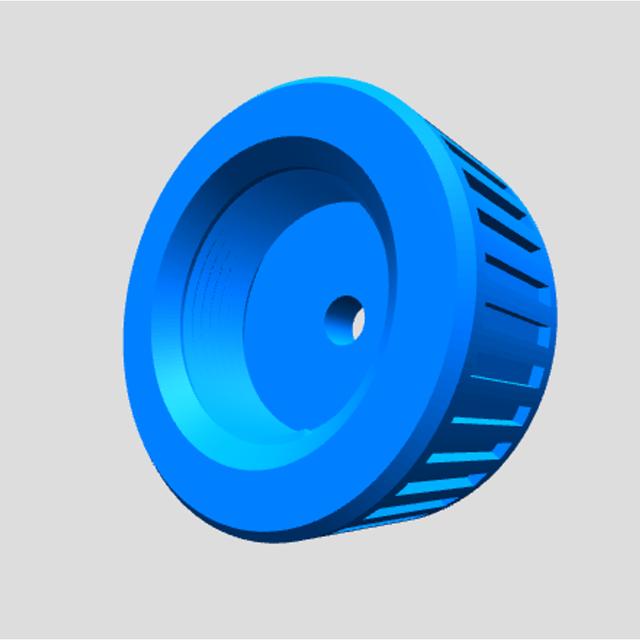

Create your own custom BSPP union nut in just a few clicks. This model is based on a practical, real-world style round union nut with grip grooves, designed for G / BSPP female threads and technical pipe connections. It is ideal for prototyping, replacement parts, custom adapters, hydraulic and pneumatic projects, and many DIY engineering applications. Instead of downloading only one fixed size, you can configure the part yourself here: Configure your own version: https://www.machdeinteil.de/produkt/ueberwurfmutter With the configurator, you can easily customize: thread size (G / BSPP) pipe bore / inner opening overall nut length This makes it easy to generate a union nut that actually fits your project, whether you need a compact pneumatic fitting, a hydraulic connection nut, or a custom plastic coupling nut for a special build. Why use the configurator? Most downloadable models come in only one size. This configurator lets you create a custom BSPP female union nut with the dimensions you need, without modifying CAD files yourself. Typical applications BSPP / G thread union nuts custom female threaded coupling nuts hydraulic connection nuts pneumatic fitting nuts plastic pipe connection nuts replacement nuts for technical assemblies prototype parts for machinery, fluid systems, and workshop builds If you need a different size, a different thread, or another bore diameter, just use the configurator and generate your own version. Custom configurator: https://www.machdeinteil.de/produkt/ueberwurfmutter
