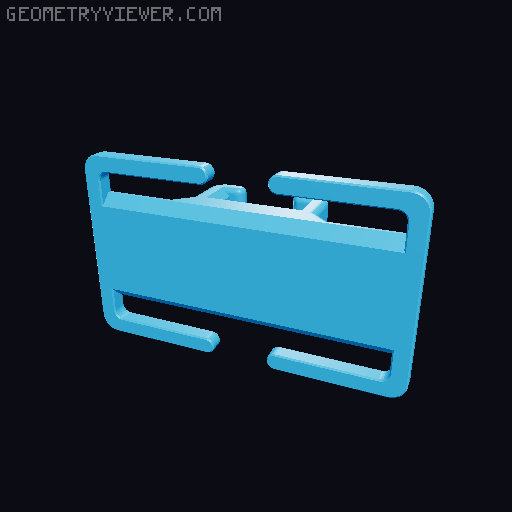

Parametric QUICK-CLIP Buckles
by Caleb Paioletti · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC |
| Triangles | 5.3k |
| Uploaded | Feb 24, 2024 |
⬇ 96 downloads
❤ 30 likes
👁 784 views
Description
This is a remix based on the original QUICK-CLIP buckles. I tried to keep the models as close to the original dimensions. while opening them up to allow for 2" webbing/straps. While modeling this, I made it parametric and uploaded the Fusion files to allow others to adapt the buckle for their use cases. Parametric Dimensions: webWidth: Defines the width of the webbing that can fit. 51 mm is the default. buckleWidth: Defines the width/thickness of the buckle's arms. 3mm is the default. webDepth: Defines the spacing between the main body of the buckle and the arms to allow for webbing of various thicknesses. 4 mm is the default. buckleGap: Defines the gap between the buckle arms where you insert the webbing/strap. 10 mm is the default.
Originally published on Printables
