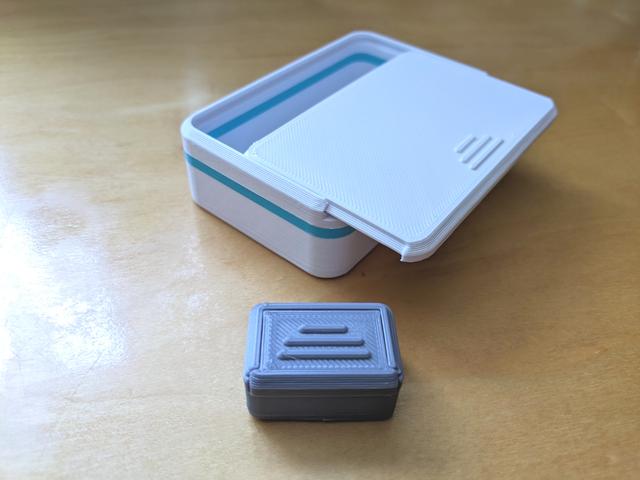

Parametric sliding lid box

A parametric box with a sliding lid. You can (currently) adjust: Outside or inside width, depth, height Wall thickness Outside radius Text on lid, either engraved or for multimaterial printing Customizer Instructions Download sliding-lid-configurator.zip and extract it Open sliding-lid-configurator.html in the extracted folder Change dimension parameters as desired Click the download STL (or STEP) file button Printing instructions: I print these at 0.3mm layer height, no supports. Changelog: Date Description 2025-05-09 Rebuild project in replicad for better browser compatibility and features Add visible labels for dimensions Fixed some odd geometry at some sizes 2025-01-25 Always use print layout 2023-03-21 Added dropdown for internal vs external dimensions Adjusted range for open slider Limit outside radius to half of the minimum width or depth Fixed bad slide shape with some radius settings About 80% faster to render 2023-03-31 Added input for lid text. Only used if box is deep enough (25mm + wall thickness) and wide enough. Added ‘print’ checkbox to drop lid onto the ground Fixed part of lid missing at some wall thickness values For a hinged box, see also: Parametric hinged small parts box For a slide-down lid: https://www.printables.com/model/702716-parametric-box-with-lid
