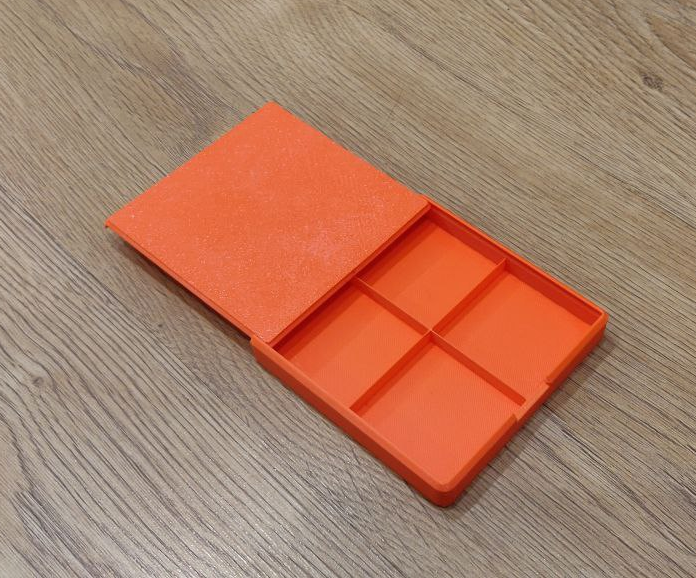

Parametric sliding lid box

UPD: 06.12.2025 Added a box organizer. The ability to create boxes without lids. UPD: 01.12.2025 Added the ability to create a blank insert. It can be exported as a .step file for cutting in the CAD program. The outline of your part for the cutout can be obtained using the ShapeScan or ToolTrace tool. UPD: 28.11.2025 Perforations have been added to the lid and bottom of the case. The cell size is adjustable, nested partitions. UPD: 23.11.2025 Added a reverse lid (convenient for multi-color text printing) The box dimensions can be set for both the outer and inner perimeters. Maximum values are 350x350x200mm. The minimum wall thickness for a box with a lid is 2 mm, without a lid 0.4 mm. You can select the thickness of the gap between the lid and the body to ensure a tight fit (the default values should be suitable for most). 📷 Image redacted — claim this model to add your own media You can choose the type of handle on the lid for easy opening: convex, concave, or no handles. (If you want to print the lid upside down on a textured PEI) 📷 Image redacted — claim this model to add your own media If you choose the option without handles, then for ease of opening you can select a cutout on the body with a width of 15-50 mm (at a value of 0, the cutout is not formed) 📷 Image redacted — claim this model to add your own media Cells/partitions can be formed. The maximum quantity is 10x10 units, and the thickness is also adjustable. 📷 Image redacted — claim this model to add your own media Cell sizes can be changed 📷 Image redacted — claim this model to add your own media Nested partitions 📷 Image redacted — claim this model to add your own media The lid can accommodate 1 to 3 lines of text. Font size, line spacing, and rotation are adjustable. You can choose the lettering depth or multicolor printing. 📷 Image redacted — claim this model to add your own media Perforations can be created on the lid and bottom of the case. All parameters are customizable (if you want perforations across the entire surface, select the maximum number of rows and columns, excess will be removed automatically). 📷 Image redacted — claim this model to add your own media You can create blank inserts. These can be exported as a .step file for cutting in a CAD program (when creating an insert, partitions will not be created). By default, the insert height is equal to the inner height of the box. This size can be reduced. 📷 Image redacted — claim this model to add your own media Create an organizer, choose the number of vertical and horizontal compartments. Adjust the thickness of the outer walls and dividers. Adjustable cutouts on the back wall. Adjustable finger cutouts for easy box retrieval. 📷 Image redacted — claim this model to add your own media How to use, download the archive file and open the .html file.
